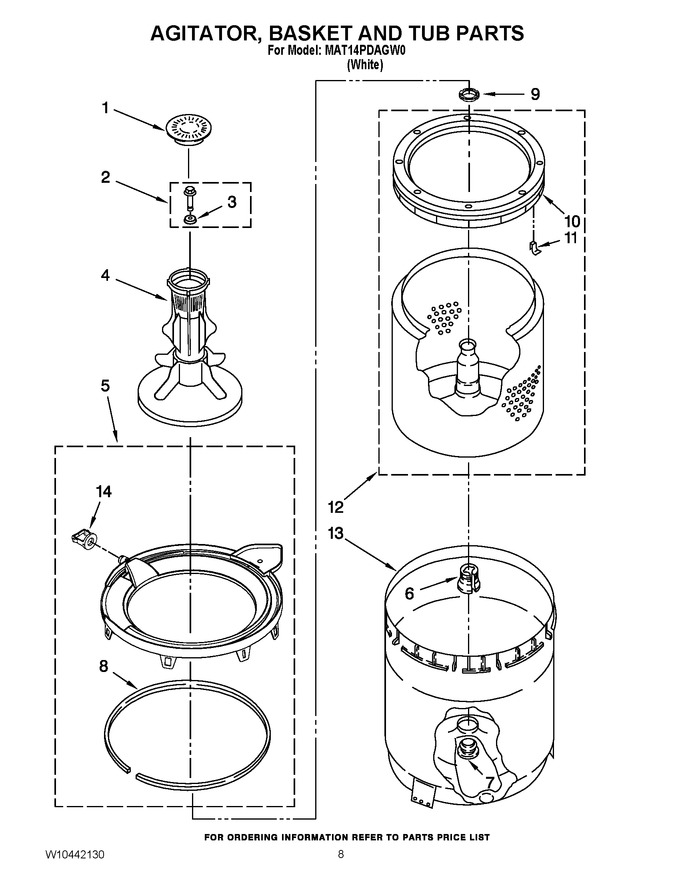

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10131111		Cap, Agitator   (Replaces: W10131111)			Immediately	$ 7.64
2	W10772621		Screw & Washer Assembly   (Replaces: W10003790)			Immediately	$ 4.72
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 9.98
4	WPW10131112		Agitator   (Replaces: W10131112)			Immediately	$ 111.72
5	W10114776		Tub Ring				$ 90.67
6	WP389140		Block, Drive   (Replaces: 389140)			Immediately	$ 24.74
7	W10814296		Gasket, Centerpost   (Replaces: 383727)			Immediately	$ 8.26
8	WP3359586		Gasket, Tub Ring   (Replaces: 3359586)				$ 81.11
9	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
10	3956205		Balance Ring (includes Item 11)				$ 75.59
11	WP8519815		Clip, Balance Ring   (Replaces: 8519815)				$ 7.51
12	8545860		Basket & Balance Ring		Appelez-nous	-
13	W10135424		Tub		Appelez-nous	-
14	8055316		Retainer, Check Valve		Appelez-nous	-
