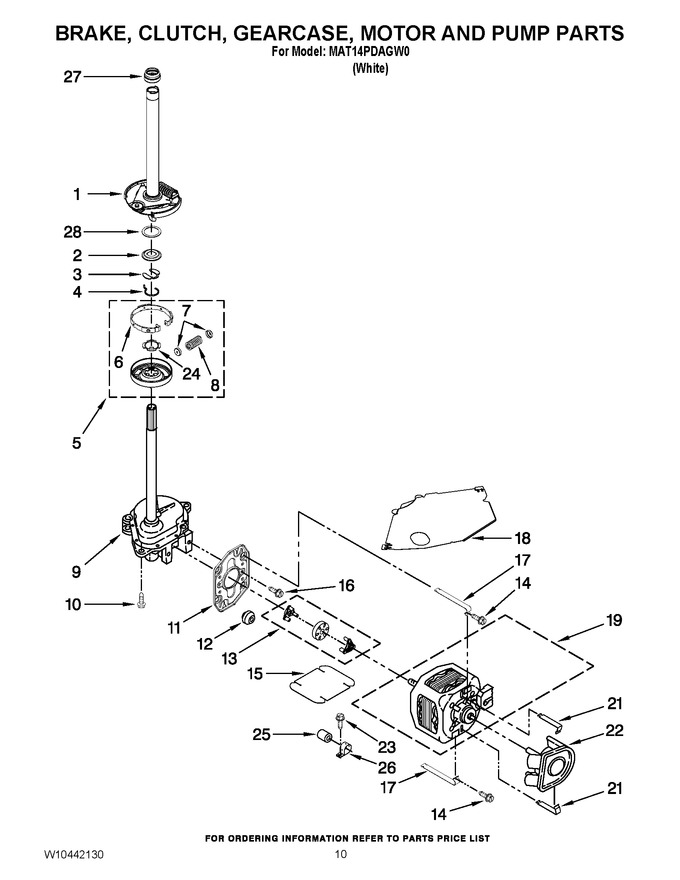

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10180686		Brake & Drive Tube (complete) (refer To Page 12 For Further Breakdown)		Appelez-nous	-
2	WP63292		Washer, Spin Tube Thrust   (Replaces: 63292)			Immediately	$ 6.94
3	WPW10080230		Ring, Spin Tube Support   (Replaces: W10080230)				$ 10.82
4	285353		Ring, Retainer   (Replaces: 63283)				$ 7.30
5	WP8299642		Clutch (complete)   (Replaces: W10135399)			Immediately	$ 124.97
6	W10118761		Band & Lining Assembly		Appelez-nous	-
7	WP62646		Cap, Clutch Spring   (Replaces: 62646)				$ 6.80
8	WP8559387		Spring & Damper Assembly   (Replaces: 8559387)				$ 7.03
9	W10140302		Gearcase (complete) (refer To Page 13 For Further Breakdown)		Appelez-nous	-
10	WP3400516		Screw, Gearcase To Base   (Replaces: 3357334)			Immediately	$ 6.47
11	WP62611		Plate, Motor Mount To Gearcase   (Replaces: 62611)				$ 105.39
12	WP62691		Grommet, Motor   (Replaces: 62691)				$ 10.64
13	285852A		Coupling, Motor And Isolation   (Replaces: 3978849)			Immediately	$ 42.66
14	WP273556		Screw No.10-16 X 5/8   (Replaces: 3387485)			Immediately	$ 7.04
15	8316060		Shield, Motor				$ 65.95
16	WP3400516		Screw   (Replaces: 3400516)			Immediately	$ 6.47
17	WPW10086010		Retainer, Motor   (Replaces: W10086010)				$ 7.15
18	W10838408		Shield, Tub To Motor   (Replaces: 3362089)				$ 33.69
19	3950297		Motor, Main Drive				$ 249.69
21	WP8546127		Retainer, Pump   (Replaces: 8546127)				$ 7.33
22	WP3363394		Pump (complete)   (Replaces: 3363394)			Immediately	$ 55.49
23	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
24	WP3355454		Clip, Anti- Rattle   (Replaces: 3355454)				$ 7.06
25	WP482156		Capacitor   (Replaces: 8572719)				$ 97.14
26	W10083210		Clamp, Capacitor		Appelez-nous	-
27	WP8577374		Seal   (Replaces: 8577374)			Immediately	$ 6.47
28	8578981		Washer, Thrust				$ 5.27
