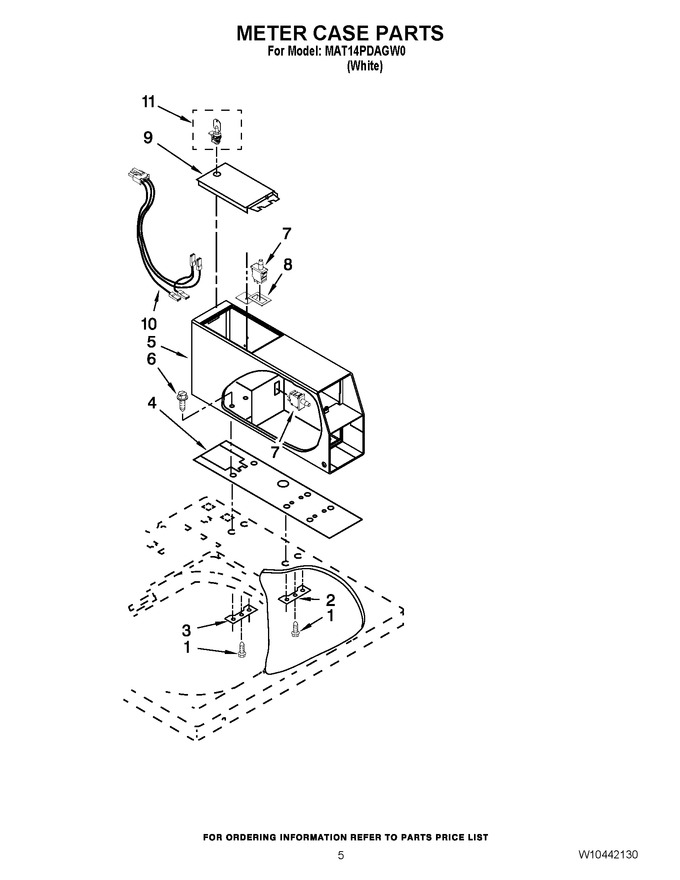

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
2	3347825		Plate, Mounting		Appelez-nous	-
3	3353813		Plate, Mounting				$ 47.08
4	WP3954812		Cushion, Case   (Replaces: 3954812)				$ 27.99
5	WPW10529176		Meter Case   (Replaces: W10136645)				$ 273.48
6	W11715721		Bolt, Meter Case Mounting (5/16-24 X 1.00)   (Replaces: 3349065)				$ 6.41
6	3353994		Bolt, Meter Case Mounting (5/16-18 X 2 1/2)		Appelez-nous	-
7	WPW10131838		Switch-vault & Service Door   (Replaces: W10131838)				$ 21.52
8	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
9	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
10	W11096090		Wire Harness, Service Switch   (Replaces: W10211244)				$ 11.48
11	W11315637		Service Door Lock   (Replaces: 8316526)			Immediately	$ 36.42
