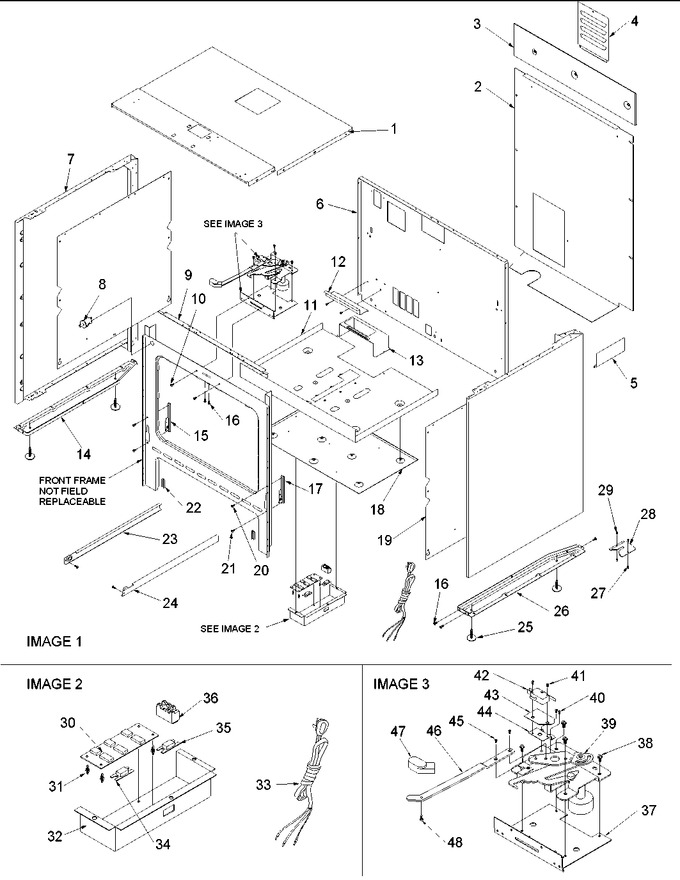

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0315622		Retainer, Insulation Top		Appelez-nous	-
2	Y0314672		Cover, Rear Wire		Appelez-nous	-
3	0314785		Shield, Rear		Appelez-nous	-
4	31800001		Plate, Access		Appelez-nous	-
5	0301955		Shield		Appelez-nous	-
6	31936201		Insulation Retainer (rear)		Appelez-nous	-
7	31825102B		Panel, Side (blk)		Appelez-nous	-
8	Y0314367		Switch, Oven Light		Appelez-nous	-
9	Y0315148		Filler, Front Frame		Appelez-nous	-
10	31750719		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
11	Y0315147		Insulation Retainer (bottom)		Appelez-nous	-
12	31782401		Wire Raceway		Appelez-nous	-
13	Y0301601		Cover,ignitor & Burner		Appelez-nous	-
14	31854501		Brace, Leveling Leg (lt)		Appelez-nous	-
15	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
16	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
17	31715202		Hinge, Oven Door (rt)		Appelez-nous	-
18	Y0315146		Shield, Heat		Appelez-nous	-
19	Y0314680		Insulation Retainer, (side)		Appelez-nous	-
20	31750719		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
21	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
22	Y0315150		Support, Stg Dwr Trk		Appelez-nous	-
23	Y0314666		Track, Storage Drawer Lt		Appelez-nous	-
24	Y0314667		Track, Storage Drawer Rt		Appelez-nous	-
25	314187B		Leg,leveling Xxx		Appelez-nous	-
26	31854502		Brace, Leveling Leg (rt)		Appelez-nous	-
27	Y0301555		Anchor, Plastic		Appelez-nous	-
28	31945201		Bracket, Anti Tip		Appelez-nous	-
29	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
30	Y0301277		Circuit Board, Erc-electric		Appelez-nous	-
31	Y0306900		Support-circuit Board		Appelez-nous	-
32	32018401		Cover, Control Board		Appelez-nous	-
33	Y0306654		Power Cord		Appelez-nous	-
34	Y0301962		Relay, Fan Switch		Appelez-nous	-
35	Y0307599		Relay, Blower Cutout		Appelez-nous	-
36	0315154		Spark Module, 4+0		Appelez-nous	-
37	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
38	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
39	31917801		Latch, Oven Door (gas)		Appelez-nous	-
40	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
41	Y0092365		Screw 4-40x1		Appelez-nous	-
42	Y0304579		Latch Switch Hi Temp		Appelez-nous	-
43	Y0091523		Insulation, Esm		Appelez-nous	-
44	Y0302316		Bracket, Switch		Appelez-nous	-
45	31750508		Screw, No.10-24x9/32 (ph Sems)		Appelez-nous	-
46	303040B		Handle, Door Latch (blk)		Appelez-nous	-
47	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
48	31750306		Screw, No.6-32 X .375 Flat Hd Ph		Appelez-nous	-
NI	M0282005		Nut, Hex .562   (Replaces: 31750113)				$ 7.07
NI	31970801		Anti-tip Pack		Appelez-nous	-
NI	31750308		Screw, No.6-32 X .375 Panhd(blk)		Appelez-nous	-
