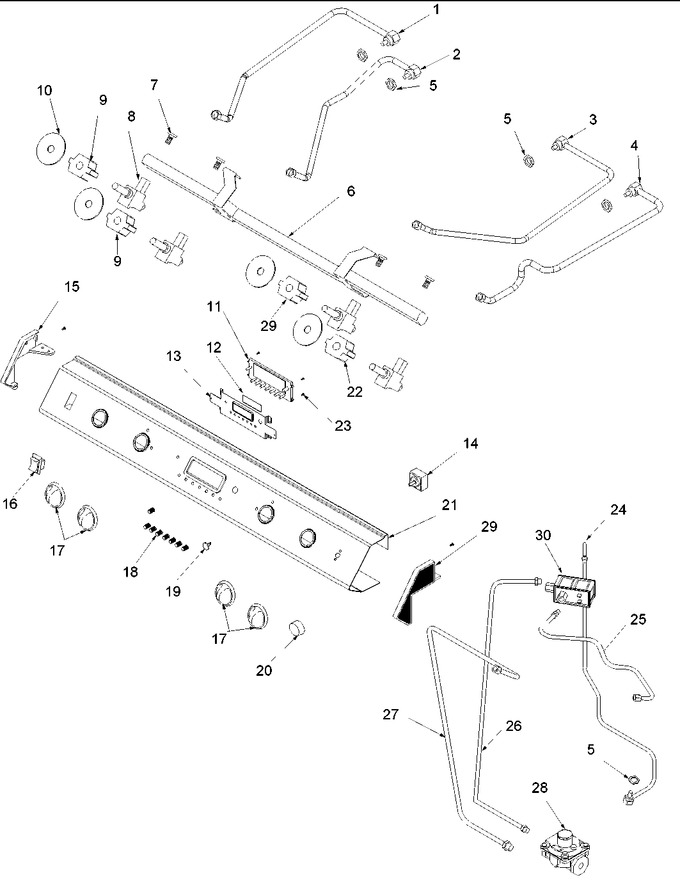

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31918601		Tubing, Orifice L.r. No.55		Appelez-nous	-
2	31918501		Tubing, Orifice L.f. No.53		Appelez-nous	-
3	31918701		Tubing, Orifice R.r. No.56		Appelez-nous	-
4	31918801		Tubing, Orifice R.f. No.55		Appelez-nous	-
6	0308150		Manifold Pipe		Appelez-nous	-
7	31750703		Screw, Valve (blk)		Appelez-nous	-
8	Y0308641		Valve, Top Burner		Appelez-nous	-
9	Y0301326		Harper Spark Switch		Appelez-nous	-
10	Y0314316		Shield, Switch		Appelez-nous	-
11	31898501		Erc, 4500 Gas		Appelez-nous	-
12	Y0308107		Glass, Clock		Appelez-nous	-
13	308085B		Bracket,erc Mount		Appelez-nous	-
14	Y0300574		Switch, Fan		Appelez-nous	-
15	308171B		End Cap, Lt (blk)		Appelez-nous	-
16	Y0300570		Switch,oven Light Xx Blk		Appelez-nous	-
17	31905418B		Knob, Gas Top Burner-180 Deg		Appelez-nous	-
18	308957B		Knob, Set Button (blk)				$ 5.85
19	308956B		Knob, Clock (blk)				$ 4.83
20	31760709B		Knob, Fan Switch (black)		Appelez-nous	-
21	31867201B		Panel, Control (black)		Appelez-nous	-
22	Y0309003		Switch, Fan & Spark		Appelez-nous	-
23	WP74004005		Screw, No.6-32 X .312 Panhd(blk)   (Replaces: 31750310)				$ 6.95
24	Y0314889		Tubing, Bake Orifice		Appelez-nous	-
25	0301744		Tubing, Gas		Appelez-nous	-
26	Y0307589		Tubing, Inlet-valve		Appelez-nous	-
27	Y0307588		Tubing, Inlet-manifold		Appelez-nous	-
28	Y0315084		Reg, Press.-nat. Only		Appelez-nous	-
29	308172B		End Cap, Rt (blk)		Appelez-nous	-
30	Y0302706		Valve, Gas, Dual		Appelez-nous	-
NI	31750302		Screw, No.3-32 X.187 Pan Hd Ph		Appelez-nous	-
NI	0307590		Brkt, Regulator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
