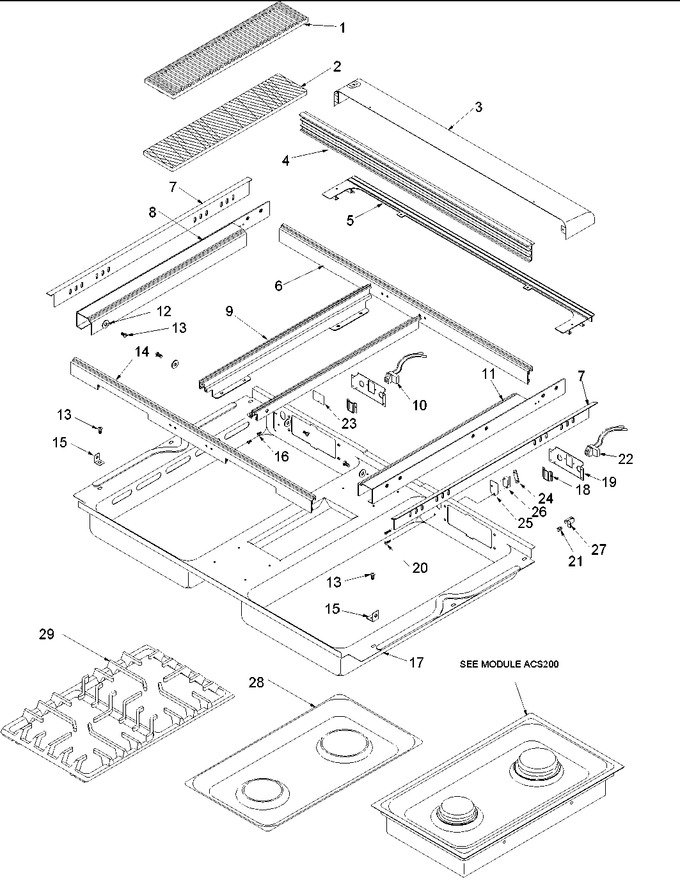

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y058902G		Cover, Vent-casting		Appelez-nous	-
2	Y0307363		Filter (17.75``x4.0``x.375``)				$ 16.98
3	302098B		Dilution Flue Cover		Appelez-nous	-
4	Y0301859		Trim, Flue Cover		Appelez-nous	-
5	315082B		Lo-backrail, Gas-b		Appelez-nous	-
6	315083B		Frame, Rear-electric (blk)		Appelez-nous	-
7	305204B		Trim, Countertop (blk)		Appelez-nous	-
8	303132B		Frame Side, Lh		Appelez-nous	-
9	300384B		Frame, Center Main Top (blk)		Appelez-nous	-
10	31908402		Assy, Plug Blk-l.h.		Appelez-nous	-
11	303133B		Frame Side, Rh		Appelez-nous	-
14	Y058528B		Frame, Front-main Top		Appelez-nous	-
15	Y0301154		Bracket, Frame Trim		Appelez-nous	-
16	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
17	31898201CG		Box, Burner		Appelez-nous	-
18	Y0040983		Brkt, Plug Block Mtg		Appelez-nous	-
19	31745201		Plate, Orifice Mtg		Appelez-nous	-
20	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
21	Y0042123		Element, Contact-module Top		Appelez-nous	-
22	31908401		Assy, Plug Blk-r.h.		Appelez-nous	-
23	31743201		Plate, Burner Box		Appelez-nous	-
24	31750107		Nut, Speed No.4-40 (blk)		Appelez-nous	-
25	Y0091523		Insulation, Esm		Appelez-nous	-
26	Y0054254		Switch, Fan		Appelez-nous	-
27	Y0316850		Brkt, Contact		Appelez-nous	-
28	315600B		Bowl, Burner-double (blk)9/12k				$ 32.81
29	316175MB		Grate-double Cast(matte Blk)9k		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
NI	315014B		Trim Kit (blk)		Appelez-nous	-
NI	31717001		Spacer, Snap-in		Appelez-nous	-
NI	31750428		Screw, No.8-18 X 1/2 Pflthd(blk)		Appelez-nous	-
