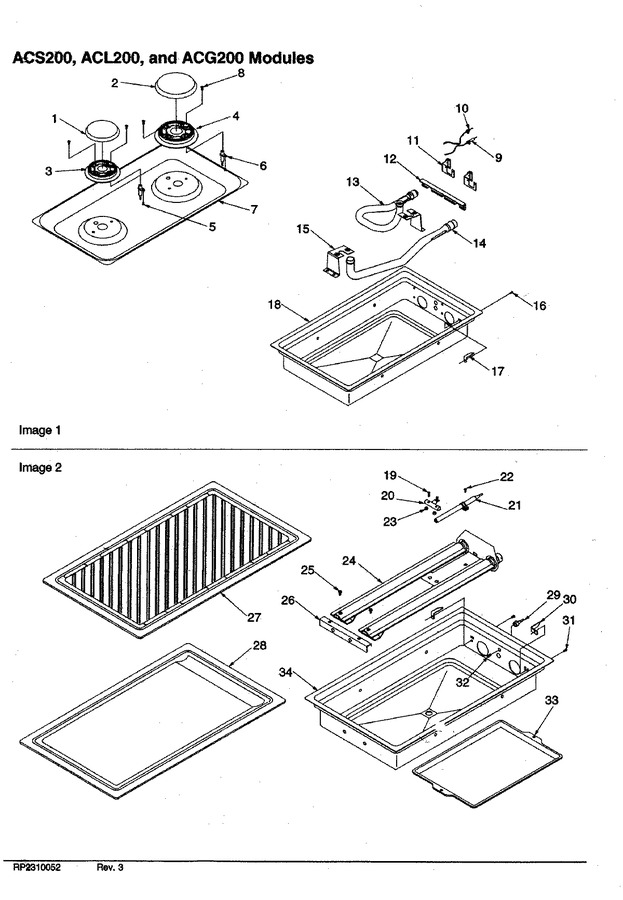

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31782602SY | Cap, Burner 9k (speckle Grey) | 10 |
|
$ 32.34 | ||||
| 2 | 31782702SY | Cap, Burner 12/13k (spkle Gry) | 10 |
|
$ 36.57 | ||||
| 2 | 31782701MB | Cap, Burner 12/13k (matte Blk) | 10 |
|
$ 35.43 | ||||
| 3 | WPY0315768 | Top Burner (medium 9k) (Replaces: Y0315768) | 10 |
|
$ 128.48 | ||||
| 4 | Y0315767 | Top Burner (large 12/13k) | 10 |
|
- | ||||
| 5 | Y0316775 | Screw, Electrode | 10 |
|
- | ||||
| 6 | WPY0316773 | Electrode, Spark Ignition (Replaces: Y0316773) | 10 |
|
Immediately | $ 37.13 | |||
| 7 | 315754W | Top, Module-sealed Burner(wht) | 10 |
|
- | ||||
| 7 | Y0316364 | Top, Module-sealed Burner (ss) | 10 |
|
- | ||||
| 7 | 315754B | Top, Module-sealed Burner(blk) | 10 |
|
- | ||||
| 8 | WPY04100059 | Screw, No.6-20 X .750 Pan Hd Ph (Replaces: 31750320) | 10 |
|
$ 6.96 | ||||
| 9 | Y0316389 | Electrode, Burner Ign. 21``wire | 10 |
|
- | ||||
| 10 | Y0315751 | Electrode, Burner Ign. 1o``wire | 10 |
|
- | ||||
| 11 | 31813601 | Brkt, Venturi Clamping | 10 |
|
- | ||||
| 12 | 31813601 | Brkt, Venturi Clamping | 10 |
|
- | ||||
| 13 | 31909401 | Venturi, Rear Burner-hw | 10 |
|
- | ||||
| 14 | 31909301 | Venturi, Front Burner-hw | 10 |
|
- | ||||
| 15 | Y0315755 | Brkt, Burner Mtg. | 10 |
|
- | ||||
| 16 | WP74004005 | Screw, No.6-32 X .312 Panhd(blk) (Replaces: 31750310) | 10 |
|
$ 6.95 | ||||
| 17 | Y0315593 | Strike, Grille Pan | 10 |
|
- | ||||
| 18 | 315757B | Module Pan,gas Sealed Brnr(bla | 10 |
|
- | ||||
| 18 | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd | 10 |
|
- | ||||
| 18 | WP693995 | Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432) | 10 |
|
Immediately | $ 6.47 | |||
| 18 | 31750007 | Washer, Lock 5/32 X 9/32 O.d. | 10 |
|
- | ||||
| 19 | Y0041821 | Screw 4-40x15/16`` | 10 |
|
- | ||||
| 20 | Y0040841 | Flash Tube Kgt591 | 10 |
|
- | ||||
| 21 | Y0042217 | Grille, Electrode | 10 |
|
- | ||||
| 22 | 31750402 | Screw, No.8-32 X 5/16 Pph (blk) | 10 |
|
- | ||||
| 23 | 31750112 | Nut, Keps No.4-40 | 10 |
|
- | ||||
| 24 | 31891801B | Assy, Grille Burner (gas) | 10 |
|
- | ||||
| 25 | WP693995 | Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432) | 10 |
|
Immediately | $ 6.47 | |||
| 26 | Y041041B | Grille Burner Rear Support | 10 |
|
- | ||||
| 27 | 31902101B | Grille , Low Smoke (blk) | 10 |
|
- | ||||
| 28 | 31902001B | Griddle, Cast (gas) | 10 |
|
- | ||||
| 29 | Y0041898 | Ground Pin Xst311 Kgt591 | 10 |
|
- | ||||
| 30 | Y0315593 | Strike, Grille Pan | 10 |
|
- | ||||
| 31 | WP74004005 | Screw, No.6-32 X .312 Panhd(blk) (Replaces: 31750310) | 10 |
|
$ 6.95 | ||||
| 32 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: 31750401) | 10 |
|
Immediately | $ 6.47 | |||
| 33 | Y0042724 | Pan, Grease Kgt591 | 10 |
|
- | ||||
| 34 | 315746CG | Module Pan & Deflector | 10 |
|
- | ||||
| 34 | 31750006 | Washer, Lock 13/16 X 3/8 O.d. | 10 |
|
- | ||||
| NOTE: | All Cartridges |
|
- |
