AGDS902E (BOM: P1131828N E) | TransGlobal : Appliance Model Lookup

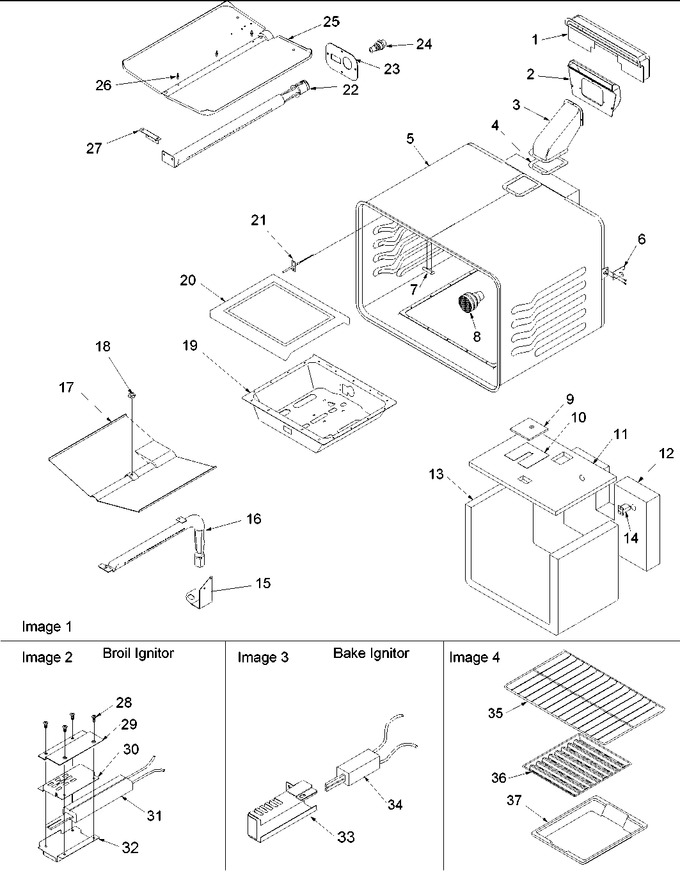

Diagram #	Part Number	Description	Availability	Ships	Price
1	301707G	Dilution Flue, Black	Appelez-nous	-
2	300081CG	Flue	Appelez-nous	-
3	Y0300082	Oven Vent	Appelez-nous	-
4	Y0301559	Gasket, Vent	Appelez-nous	-
5	303927CG	Liner Oven	Appelez-nous	-
6	Y0058852	Bracket, Oven Cavity	Appelez-nous	-
7	Y0315022	Cover, Chip	Appelez-nous	-
8	WP74011278	Assy, Oven Light (Replaces: Y0314842)			$ 101.56
9	Y0302497	Insulation, Cover Plate Latch	Appelez-nous	-
10	0302483	Cover Plate, Latch	Appelez-nous	-
11	0301711	Insulation, Top	Appelez-nous	-
12	31975101	Insulation, Back	Appelez-nous	-
13	31975201	Insulation, Wrapper	Appelez-nous	-
14	Y0301551	Wire Raceway	Appelez-nous	-
15	Y0314888	Brk`t, Oven Orifice	Appelez-nous	-
16	31716401	Burner, Bake	Appelez-nous	-
17	Y0316215	Baffle, Oven Burner	Appelez-nous	-
18	M0282009	Nut (Replaces: 31750117)			$ 12.06
19	Y0063802	Burner Box, Lower	Appelez-nous	-
20	316214CG	Bottom, Oven	Appelez-nous	-
21	WPY0314907	Sensor, Temperature (Replaces: Y0314907)			$ 201.45
22	Y0314915	Burner, Broil	Appelez-nous	-
23	Y0301532	Plate, Broil Burner	Appelez-nous	-
24	Y0314452	Orifice, Broil Burner	Appelez-nous	-
25	Y0314916	Reflector, Broil	Appelez-nous	-
26	Y0097822	Rivet, Pop	Appelez-nous	-
27	0300072	Support, Broil Burner	Appelez-nous	-
28	31750413	Screw, No.8-18 X3/8 Hex Wsh (ss)	Appelez-nous	-
29	0301557	Mtg. Bracket, Broil Ignitor	Appelez-nous	-
30	Y0314224	Shield, Broiler Ignitor	Appelez-nous	-
31	31939801	Ignitor, Broil	Appelez-nous	-
32	Y0053220	Shield, Broil Deflector	Appelez-nous	-
33	Y0063740	Shield, Ignitor-bake	Appelez-nous	-
34	786324	Ignitor, Bake (Replaces: 31939901)		Immediately	$ 60.68
35	WP314763J	Rack,oven 22 27/32`` X 15 7/16`` (Replaces: 314763J)			$ 70.11
36	4396923	Grid, Broiler (cg) (Replaces: 304451CG)		Immediately	$ 52.04
37	4396923	Pan, Broiler (cg) (Replaces: 314175CG)		Immediately	$ 52.04
NI	Y0059417	Plug, Ignitor Wires	Appelez-nous	-
