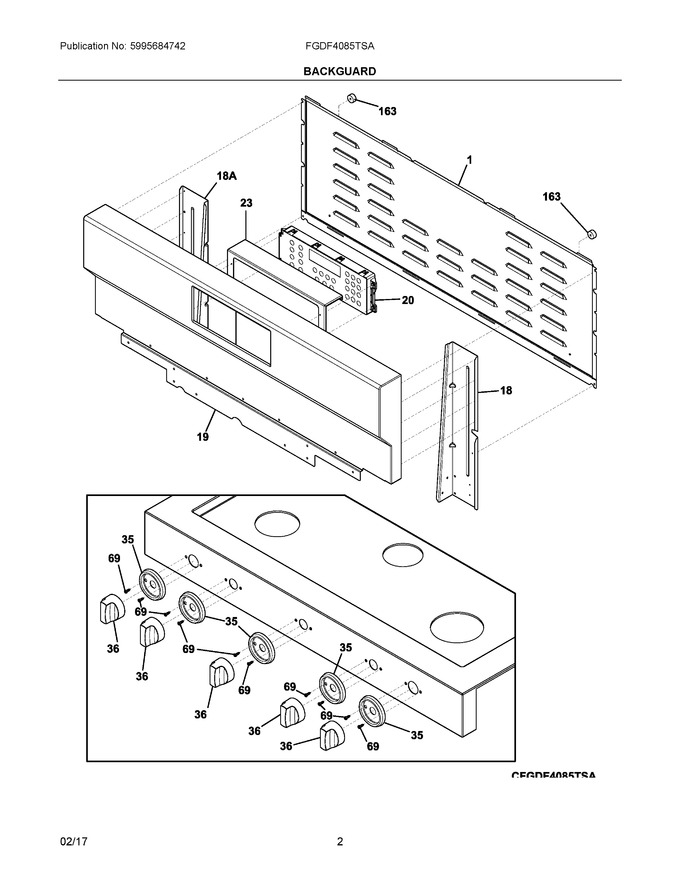

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304508551		Panel, Rear Cover, Upper		Appelez-nous	-
18	808373701		Bracket, Support, Rh		Appelez-nous	-
19	5304504336		Panel, Backguard, Stainless		Appelez-nous	-
20	139058402		Control Assembly, Electronic, Es536w1, Black, W/touch Pad				$ 430.52
23	807328502		Bracket, Control Mtg.		Appelez-nous	-
35	808312202		Skirt, Knob, Stainless		Appelez-nous	-
36	808868202		Knob, Top Valve, Stainless		Appelez-nous	-
69	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
163	318531700		Spacer, (2)		Appelez-nous	-
18A	808373702		Bracket, Support, Lh		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304411569		Tape, 3/4" Wide, Foam, Gray		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
