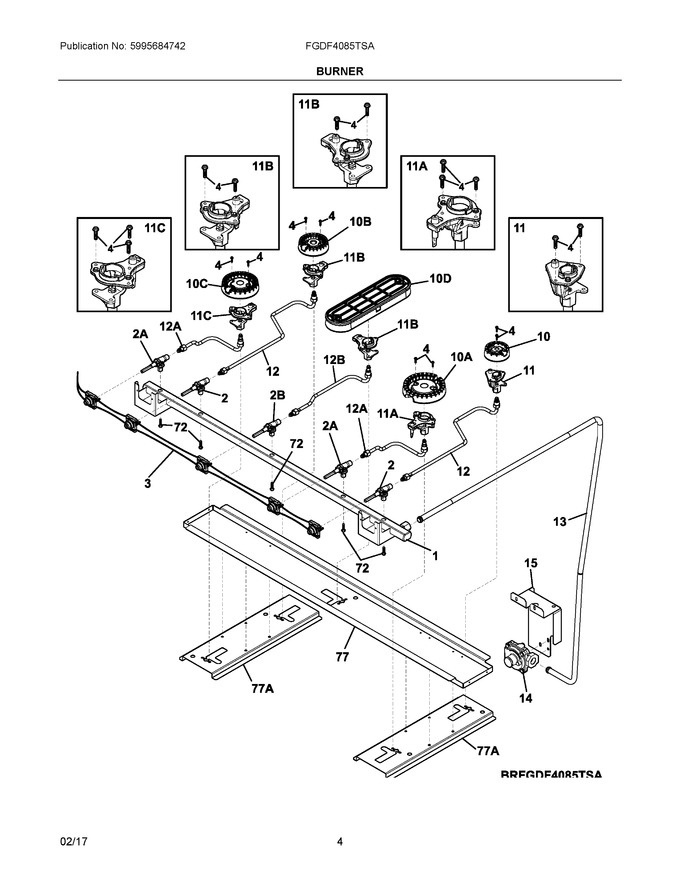

03 - Burner


04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509382		Manifold, Assembly, W/brackets		Appelez-nous	-
2	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
3	5304509388		Harness Assembly, Ignitor, W/switches		Appelez-nous	-
4	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	807843801		Tube, Burner, Lr/rr		Appelez-nous	-
13	5304509392		Tube, Manifold, To Regulator		Appelez-nous	-
14	5304509385		Regulator, Valve		Appelez-nous	-
15	5304509394		Bracket, Regulator		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	5304509409		Brace, Orifice Support, Center		Appelez-nous	-
10A	316438400		Burner, Sealed, 18.2k			Immediately	$ 83.42
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10C	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 177.19
11A	316543200		Ignitor/orifice Assy., Top Burner, 18k, W/holder				$ 13.61
11B	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11C	316543206		Ignitor/orifice Assy., Top Burner, 14k, W/holder				$ 146.71
12A	807843802		Tube, Burner, Lf/rf		Appelez-nous	-
12B	807843803		Tube, Burner, Center		Appelez-nous	-
2B	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
2BA	5304506551		Valve, Top Burner, Pink Stem, 2500btu				$ 61.43
77A	5304509410		Brace, Orifice Support, Side		Appelez-nous	-
NI	5304509416		Harness, Ignition, Spark Module, To Ignitors		Appelez-nous	-
NI	808695307		Lp Conversion Kit		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
