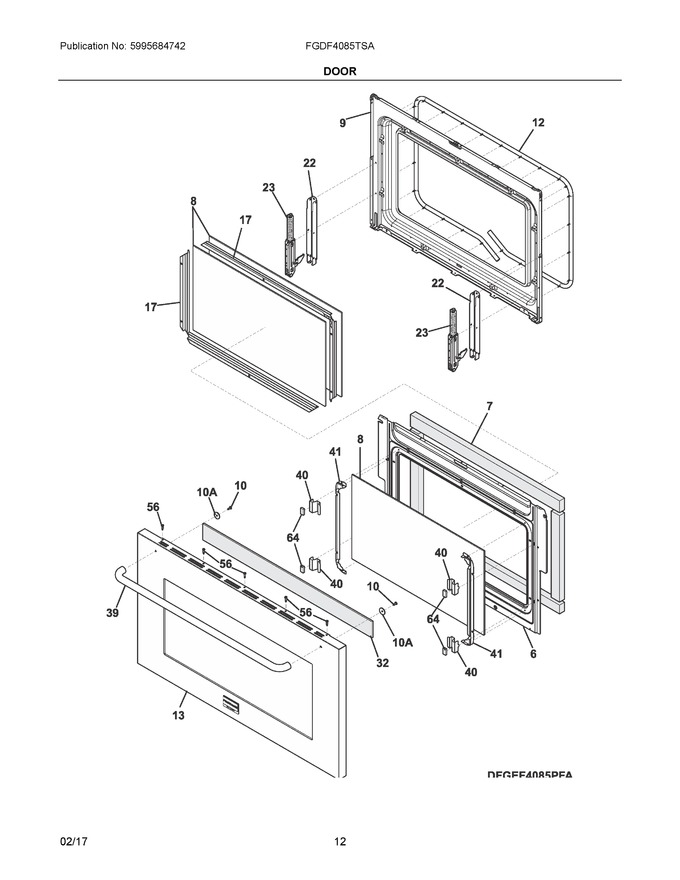

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260552		Baffle, Door		Appelez-nous	-
7	807354901		Insulation Assy., Door		Appelez-nous	-
8	318212250		Glass, Oven Door, Heat Barrier, (2)				$ 261.63
9	318364604		Liner, Oven Door		Appelez-nous	-
10	240442708		Screw, 10-32 X 3/4, (4)   (Replaces: 5304400794)				$ 8.34
12	5304504355		Seal, Oven Door				$ 117.34
13	5304509012		Door Assembly, Outer, Stainless, W/badge		Appelez-nous	-
17	318376403		Spacer, Door Glass, (2)		Appelez-nous	-
22	318353803		Retainer, Hinge				$ 52.45
23	318244307		Hinge Assy, (2)				$ 151.68
32	5304508568		Insulation, Door Skin		Appelez-nous	-
39	318039813		Handle, Door, Stainless		Appelez-nous	-
40	318364701		Bracket, Glass, (4)		Appelez-nous	-
41	5304508554		Bracket, Glass Retainer		Appelez-nous	-
56	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
64	318165800		Spacer, Glass, Foam				$ 17.72
10A	5304498487		Washer, Handle Screw		Appelez-nous	-
NI	316355100		Insulation, Flue/side/door		Appelez-nous	-
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22

    View Diagram in Separate Window       Print Part List
