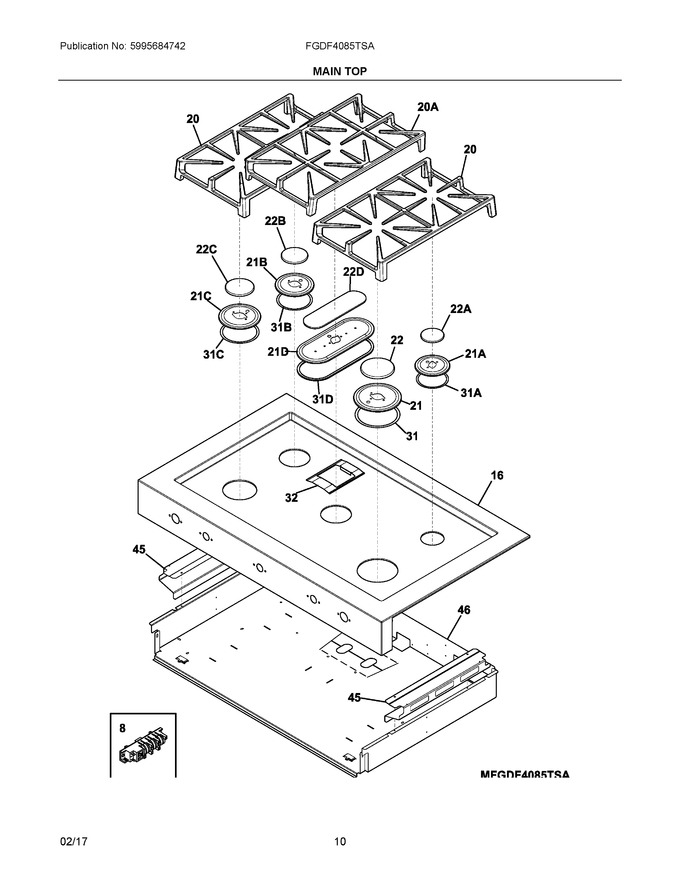

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	808608804		Spark Module			Immediately	$ 76.06
16	139083507		Main Top, Assembly, Black/stainless		Appelez-nous	-
20	5304509384		Grate, Side, Black		Appelez-nous	-
21	318293204		Skirt, 17k Burner, Black		Appelez-nous	-
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
31	316242004		Seal, 16k/17k Burner				$ 18.95
32	5304509378		Bracket, Gasket Retainer		Appelez-nous	-
45	807328401		Bracket, Side Support		Appelez-nous	-
46	807353603		Box, Burner		Appelez-nous	-
20A	5304509383		Grate, Center, Black		Appelez-nous	-
21A	318293107		Skirt, 5k Burner, Black				$ 60.67
21B	318293007		Skirt, 9.5k Burner, Black				$ 65.22
21C	318293308		Skirt, 14k Burner, Black			Immediately	$ 70.52
21D	807844001		Skirt, 9.5k Burner, Black, Oval		Appelez-nous	-
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22C	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 72.30
31A	316242002		Seal, 5k/9.5k Burner				$ 25.02
31B	316242001		Seal, 9.5k/12k Burner				$ 23.06
31C	316242000		Seal, 12k/14k Burner				$ 73.71
31D	807844101		Seal, Burner, 9.5k Oval		Appelez-nous	-
NI	5304509416		Harness, Ignition, Spark Module, To Ignitors		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NIA	5304505563		Wire, Ground, Spark Module, W/connector			Immediately	$ 16.23
NIB	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
