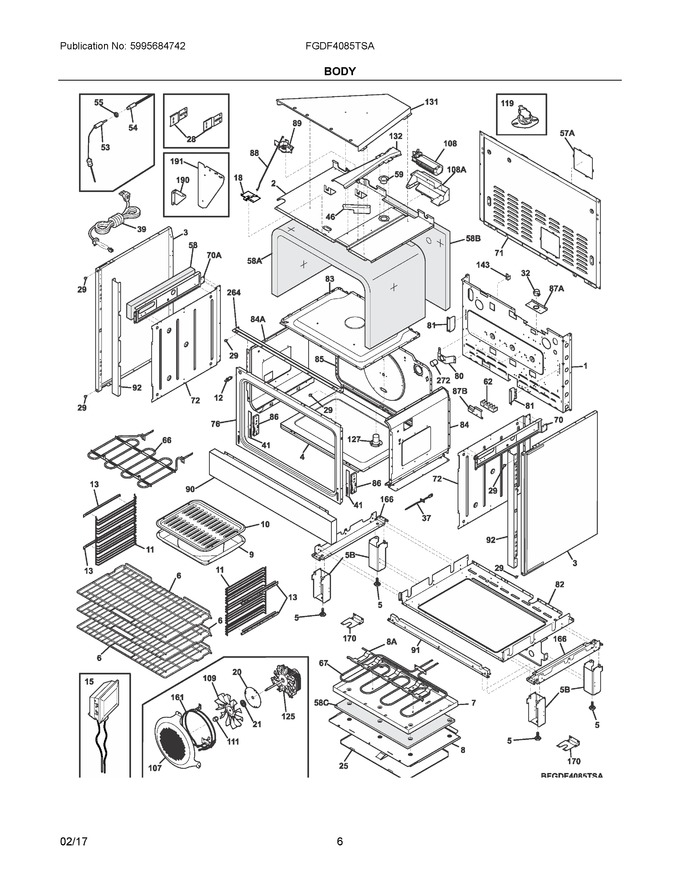

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259255		Back, Main		Appelez-nous	-
2	318258955		Shield, Insulation, Upper		Appelez-nous	-
3	807310002		Panel, Bodyside, Black		Appelez-nous	-
4	318364138		Liner, Oven Bottom, Slate Blue		Appelez-nous	-
5	318175506		Screw, Leveling				$ 38.28
6	808713929		Rack Assembly, Ladder, Nickel, W/handle		Appelez-nous	-
7	318297350		Box, Bake Element		Appelez-nous	-
8	318359551		Panel, Service		Appelez-nous	-
9	316081902		Pan, Broiler, Slate Blue Optional Accessory				$ 83.42
10	316082002		Insert, Broiler Pan, Slate Blue Optional Accessory				$ 81.14
11	808713925		Ladder Assembly, Kit, Nickel, W/2 Ladders		Appelez-nous	-
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	318603922		Bracket, Ladder Mtg., Slate Blue, (4)		Appelez-nous	-
15	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
20	318389400		Plate, Retainer				$ 16.21
21	318389000		Seal, Ring				$ 22.75
25	318291900		Bracket, Shield, Lower				$ 94.27
28	808755702		Bracket, Lower Body, Side, (2)		Appelez-nous	-
29	316517600		Bumper, Front, Main				$ 12.05
32	5304508576		Bushing, Power Cord, Snap Tie		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
39	5304507342		Cord, Range Power, 4 Wire				$ 100.89
40	808766101		Shield, Cord		Appelez-nous	-
41	318366603		Spacer, Front Frame   (Replaces: 318366601)		Appelez-nous	-
46	318258906		Deflector, Air		Appelez-nous	-
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 106.19
54	316536907		Receptacle, Probe		Appelez-nous	-
55	316247700		Nut, Mounting				$ 18.20
58	5304508550		Insulation, Oven Wrapper, Extensions		Appelez-nous	-
59	318072577		Duct, Oven Vent				$ 16.30
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255851		Element, Broil, 4000w				$ 311.85
67	318254905		Element, Bake, 3000w				$ 238.14
70	807309401		Shield, Insulation, Rh Top		Appelez-nous	-
71	5304508552		Shield, Rear Cover		Appelez-nous	-
72	318259151		Shield, Insulation, Sides, (2)		Appelez-nous	-
76	318364904		Front, Oven, Slate Blue		Appelez-nous	-
80	318364800		Plate, Oven Mtg		Appelez-nous	-
81	318373700		Bracket, Oven, (2)		Appelez-nous	-
82	318258786		Shield, Insulation, Lower		Appelez-nous	-
83	318364251		Liner, Oven Top, Slate Blue		Appelez-nous	-
84	318364381		Liner, Oven Side, Slate Blue, Rh		Appelez-nous	-
85	318364482		Liner, Oven Back, Slate Blue		Appelez-nous	-
86	318241406		Receptacle, Hinge, (2)				$ 75.83
88	318376500		Rod, Latch		Appelez-nous	-
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
90	807340201		Panel, Kick, Stainless		Appelez-nous	-
91	318376300		Bracket, Reinforcement		Appelez-nous	-
92	807327504		Filler, Side Panel, Black		Appelez-nous	-
107	318906603		Cover, Fan, Slate Blue		Appelez-nous	-
108	318073028		Motor, Blower			Immediately	$ 271.69
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
125	5304463302		Motor, Fan   (Replaces: 318398201)			Immediately	$ 259.95
127	318357002		Adapter, Vent Tube		Appelez-nous	-
131	808220301		Box, Vent		Appelez-nous	-
132	318347800		Chimney		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
161	318255511		Element, Convection, 2500 W			Immediately	$ 110.20
166	318352550		Bracket, Leveling Leg, (2), Reinforcement		Appelez-nous	-
170	316112006		Anti Tip Kit, Assy, 40", W/template		Appelez-nous	-
190	318368404		Bracket, Reinforcement, Rh		Appelez-nous	-
191	5304508570		Bracket, Stiffening, Lower		Appelez-nous	-
264	318257753		Trim, Oven, Black, Front		Appelez-nous	-
272	318249408		Tube, Protector		Appelez-nous	-
108A	5304508574		Bracket, Fan Support		Appelez-nous	-
57A	318407100		Panel, Access		Appelez-nous	-
58A	5304508559		Insulation, Oven Wrapper		Appelez-nous	-
58B	808122502		Insulation, Oven Back		Appelez-nous	-
58C	318294913		Insullation, Bake Element		Appelez-nous	-
5B	807309301		Bracket, Leveling Leg, (4)		Appelez-nous	-
70A	807309402		Shield, Insulation, Lh Top		Appelez-nous	-
84A	318364376		Liner, Oven Side, Slate Blue, Lh		Appelez-nous	-
87A	318111806		Plate, Cord Set Mtg				$ 11.68
87B	5304508575		Bracket, Terminal Block		Appelez-nous	-
8A	318313605		Bracket, Bake Element		Appelez-nous	-
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5304517285		Harness Assembly, Filter, Electrical, W/capacitors   (Replaces: 5304500988)				$ 38.68
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304509386		Harness, Wiring, Main		Appelez-nous	-
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	318165800		Spacer, Glass, Foam				$ 17.72
NIA	5304481623		Screw, #10-32x1/2				$ 9.61
NIA	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIA	154079601		Nut, Bracket Mtg, (12)   (Replaces: 5304463707)				$ 0.41
NIA	5304500625		Harness, Wiring, Door Switch		Appelez-nous	-
NIA	318373001		Bracket, Receptacle, Temp Probe				$ 9.87
NIA	5304504339		Insulation, Bodyside		Appelez-nous	-
NIB	5304508569		Clip, Bodyside, Alignment		Appelez-nous	-
NIB	5303310510		Screw, 10-24 X 0.625				$ 14.18
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	316542202		Insulator		Appelez-nous	-
NID	318264200		Plate, Grounding Strap				$ 23.51
