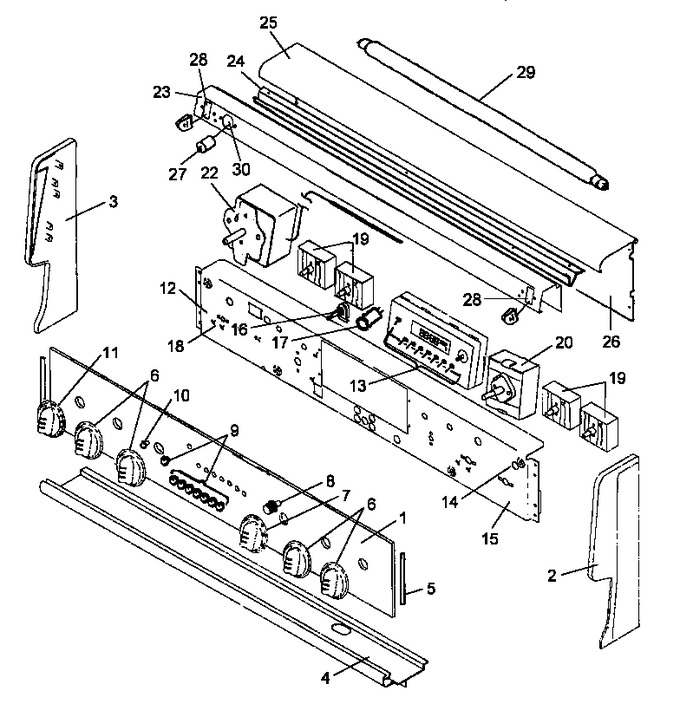

ARH667E (BOM: P1142632N) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	0306680	Glass, Control	Appelez-nous	-
2	306202B	End Cap Assy.	Appelez-nous	-
3	306203B	Ass`y, End Cap Lh (black)	Appelez-nous	-
4	306198B	Kit, Vent Rework-blk	Appelez-nous	-
5	0305309	Channel Glass (blk)	Appelez-nous	-
6	0306671	Knob, Infinite Switch (blk)	Appelez-nous	-
6	0306233	Knob, Dual Inf Switch (blk)	Appelez-nous	-
6	309506B	Knob, Control-10 Position-blk	Appelez-nous	-
8	308956B	Knob, Clock (blk)			$ 4.83
9	309887B	Button, Erc (blk)	Appelez-nous	-
10	306674B	Knob, Light Switch (blk)	Appelez-nous	-
12	Y0309723	Panel, Control	Appelez-nous	-
13	0309888	Pin, Actuator	Appelez-nous	-
14	Y0063661	Bumper, Oven Door	Appelez-nous	-
15	WP3400882	Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768)		Immediately	$ 6.47
16	Y0306673	Switch, Oven Light, Rotary	Appelez-nous	-
17	Y0305660	Light, Indicator (red)	Appelez-nous	-
18	WP3400882	Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768)		Immediately	$ 6.47
19	Y0306672	Switch, Infinite (wht)	Appelez-nous	-
19	0309549	Switch, Dual Infinite (wht)	Appelez-nous	-
19	Y0306235	Switch, Infinite	Appelez-nous	-
19	Y0307429	Control, Surface	Appelez-nous	-
23	307211B	Bracket, Light	Appelez-nous	-
24	0304977	Light Diffuser Backguard-clear	Appelez-nous	-
25	304955B	Trim, Top Backguard (blk)	Appelez-nous	-
26	0309137	Cover, Backguard	Appelez-nous	-
27	0071920	Starter, Flourescent	Appelez-nous	-
28	Y0304559	Lamp Holder-floures	Appelez-nous	-
29	WPY0067945	Lamp, Flourescent (Replaces: Y0067945)			$ 29.33
30	Y0304560	Start Holdr-flour.lmp	Appelez-nous	-
NI	0306590	Support, Bkgd (rh)	Appelez-nous	-
NI	Y0309441	Erc 3, Elec. Auto Latch	Appelez-nous	-
NI	Y0076175	Nut	Appelez-nous	-
NI	0306589	Support, Bkgd (lh)	Appelez-nous	-
NI	Y0305391	Collar, Starter Socket	Appelez-nous	-
