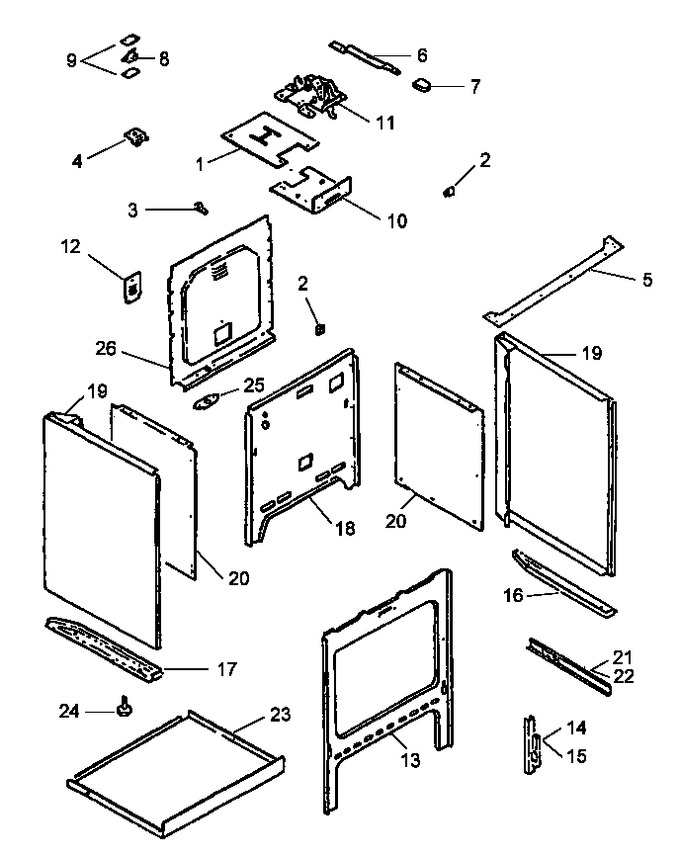

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0063353		Retainer, Oven Light		Appelez-nous	-
2	Y0091587		Cable, Clip Esm		Appelez-nous	-
3	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
5	0306206		Shield, Main Top		Appelez-nous	-
8	Y0314277		Switch, Door Latch		Appelez-nous	-
10	Y0309428		Bracket, Latch Mtg.		Appelez-nous	-
11	Y0309430		Latch, Oven Door		Appelez-nous	-
12	Y0058435		Access Plate, Rear		Appelez-nous	-
13	Y00000000		See Note See Note Front Frame Not Field Replaceable		Appelez-nous	-
14	Y0066953		Kit, Door Hinge(lh-hs)		Appelez-nous	-
15	Y0067795		Kit, Door Hinge(rh-ss)		Appelez-nous	-
16	314189B		Brace, Leveling Leg (rt)		Appelez-nous	-
17	314188B		Brace, Leveling Leg (lt)		Appelez-nous	-
18	0309081		Retainer, Rear Insul.		Appelez-nous	-
19	306081B		Panel, Side (blk)		Appelez-nous	-
20	0304282		Retainer, Insulation (side)		Appelez-nous	-
21	Y0306402		Track, Storage Dwr Lh		Appelez-nous	-
22	0306403		Track, Storage Dwr Rh		Appelez-nous	-
23	Y0308662		Retainer, Insulation (bottom)		Appelez-nous	-
24	314187B		Leg,leveling Xxx		Appelez-nous	-
25	0058311		Plate, Main Inlet Wire		Appelez-nous	-
26	Y0307342		Cover, Rear		Appelez-nous	-
NI	Y0301028		Bracket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
