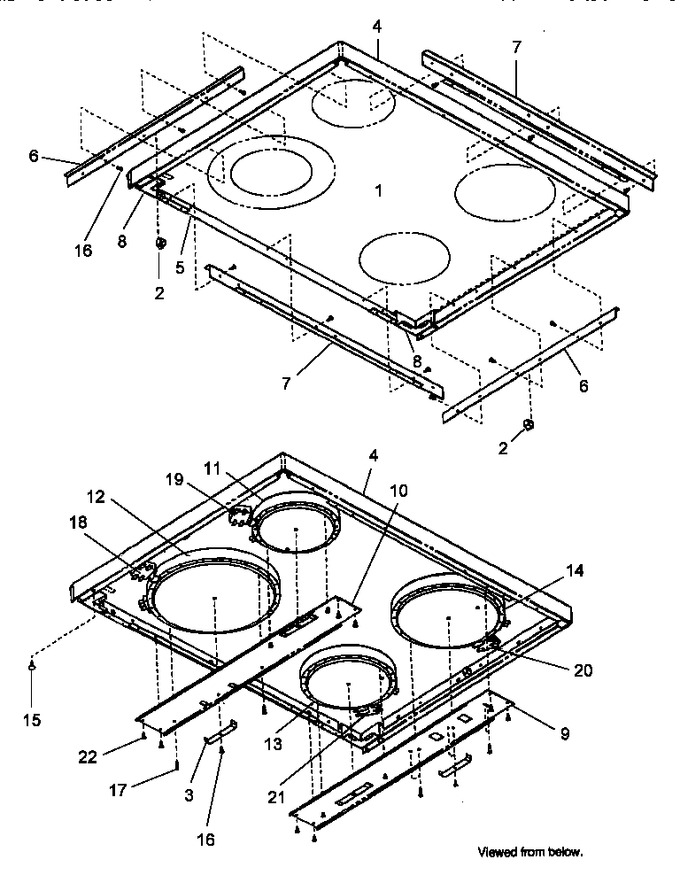

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309548B		Cooktop, Ceramic (black)		Appelez-nous	-
2	Y0091587		Cable, Clip Esm		Appelez-nous	-
3	Y0306683		Spring, Element		Appelez-nous	-
4	306193B		Trim, Frame Rangetop (black)		Appelez-nous	-
5	0306194		Frame, Rear		Appelez-nous	-
6	0306186		Support, Glass		Appelez-nous	-
7	0306189		Support, Glass		Appelez-nous	-
8	306187B		Gusset, Glass Sup		Appelez-nous	-
9	306191B		Brkt, Elem. R.h.		Appelez-nous	-
10	306192B		Brkt., Elem. L.h.		Appelez-nous	-
11	Y0306213		Heater, Radiant (1200w)		Appelez-nous	-
12	W10823726		Element, Dual Ribbon 1000/2500   (Replaces: Y0306218)				$ 308.80
13	Y0307432		Element, Haloring-1500 W		Appelez-nous	-
14	Y0307433		Element, Haloring-1800 W		Appelez-nous	-
15	0306652		Fastener, Clip		Appelez-nous	-
16	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
17	0306212		Screw, Shoulder		Appelez-nous	-
18	10061013		Limiter-temp, Large		Appelez-nous	-
19	10061012		Limiter-temp, Small		Appelez-nous	-
20	10061003		Limiter, Temp, Large		Appelez-nous	-
21	10061017		Limiter		Appelez-nous	-
22	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	Y0307330		Tape, Vinyl Foam, Roll		Appelez-nous	-
