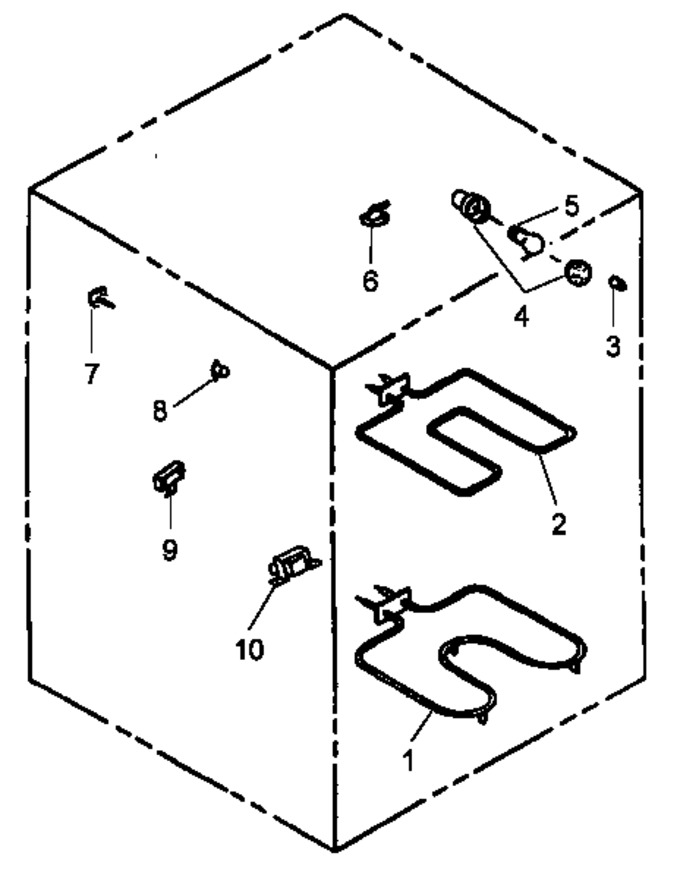

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
2	WPY0061732		Element, Broil (240v-3000w)   (Replaces: Y0061732)				$ 158.37
3	Y0307209		Switch, Oven Dr		Appelez-nous	-
4	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
5	Y0042175		Bulb, Light		Appelez-nous	-
6	Y0314277		Switch, Door Latch		Appelez-nous	-
7	WPY0314907		Sensor, Temperature   (Replaces: Y0306529)				$ 201.45
8	Y0053584		Switch, Hi Limit		Appelez-nous	-
9	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
10	Y0071869		Ballast		Appelez-nous	-
NI	0306381		Hex Nut No.10-32 Nickel		Appelez-nous	-
