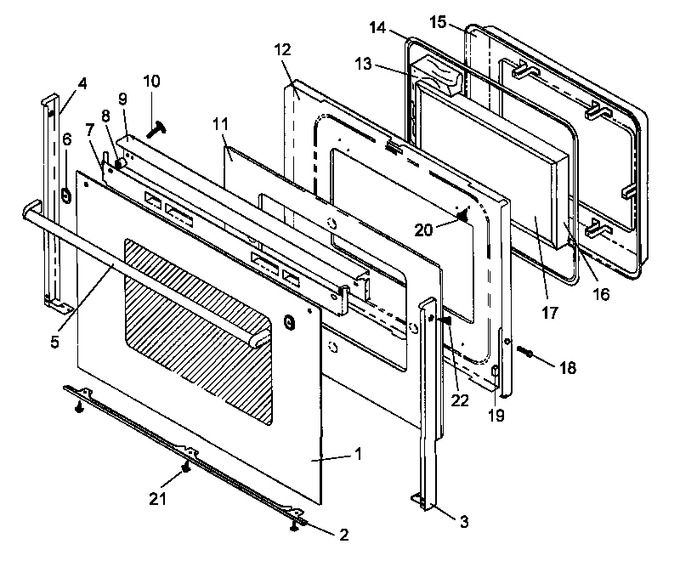

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309641B		Glass, Outer Oven Door (blk)		Appelez-nous	-
2	309460B		Support, Glass (blk)		Appelez-nous	-
3	309457B		End Cap, Rt (blk)		Appelez-nous	-
4	309458B		End Cap, Lt (blk)		Appelez-nous	-
5	309624B		Handle, Oven Door (blk)		Appelez-nous	-
6	307892B		Spacer, Handle (blk)		Appelez-nous	-
7	309642B		Assy, Glass Heat Shield (blk)		Appelez-nous	-
8	309461B		Bushing, Handle (blk)		Appelez-nous	-
9	309456B		Trim, Upper Door		Appelez-nous	-
10	Y0079863		Screw, No.10-24x3/8 (ph Trs Hd)		Appelez-nous	-
11	Y0309068		Shield, Heat		Appelez-nous	-
12	309070CG		Liner, Oven Door (elec)		Appelez-nous	-
13	Y0041966		Insulation,wrapper		Appelez-nous	-
14	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
15	309064CG		Pad, Oven Door		Appelez-nous	-
16	Y0309071		Frame, Window Pack		Appelez-nous	-
17	Y0309074		Glass Window 18`` X 11`` X 3/16``		Appelez-nous	-
18	Y0302648		Rivet, Pop		Appelez-nous	-
19	Y0309627		Bumper, Rubber		Appelez-nous	-
20	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
21	0302844		Screw No.8 18 X 1/2 Black		Appelez-nous	-
22	Y0303777		Screw No.8-18 X .375 (bl)		Appelez-nous	-
