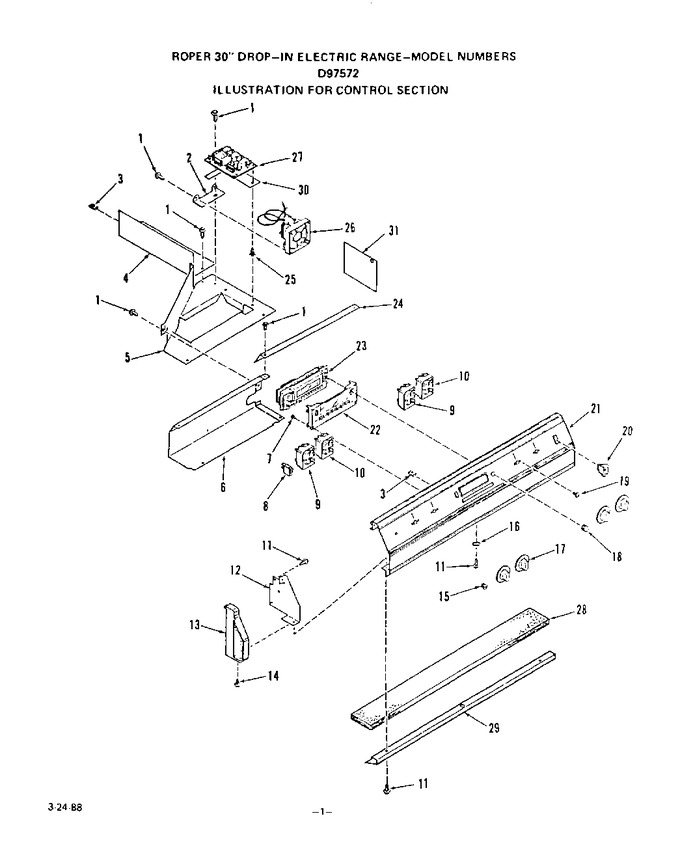

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	337484		Fan Bracket		Appelez-nous	-
3	108069		Speed Nut 10 - 32		Appelez-nous	-
4	337663		Fan Duct		Appelez-nous	-
5	337664		Lock Cover		Appelez-nous	-
6	313197		Wire Cover		Appelez-nous	-
7	78153		Screw 6-32x5/16``		Appelez-nous	-
8	331717		Indicator Light		Appelez-nous	-
9	324608		Indicator Control		Appelez-nous	-
10	324609		Infinite Control		Appelez-nous	-
11	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
12	315398		Control Panel Mounting Bracket (right)		Appelez-nous	-
12	315400		Control Panel Mounting Bracket (left)		Appelez-nous	-
13	315398		End Cap (right)		Appelez-nous	-
13	330818		End Cap (left)		Appelez-nous	-
14	69014		Screw 10abx1/2``		Appelez-nous	-
15	331705		Lens-indicator Light		Appelez-nous	-
16	21067		Washer		Appelez-nous	-
17	336379		Knob-infinite		Appelez-nous	-
18	339197		Clock Knob		Appelez-nous	-
19	78565		Screw 8-32x3/16``		Appelez-nous	-
20	334649		Oven Light Switch		Appelez-nous	-
21	336550		Control Panel		Appelez-nous	-
22	334898		Clock Lens Asm		Appelez-nous	-
23	338693		Clock/oven Control		Appelez-nous	-
24	338235		Control Cover		Appelez-nous	-
25	334955		Spacer		Appelez-nous	-
26	336471		Fan		Appelez-nous	-
27	338138		Relay Circuit Board		Appelez-nous	-
28	338411		Insulation		Appelez-nous	-
29	338597		Control Panel Shield		Appelez-nous	-
30	339703		Relay Insulator		Appelez-nous	-
31	340075		Repair Parts List		Appelez-nous	-
31	336125		Use & Care Manual		Appelez-nous	-
31	336124		Installation Guide		Appelez-nous	-
31	339257		Louver Shield		Appelez-nous	-
