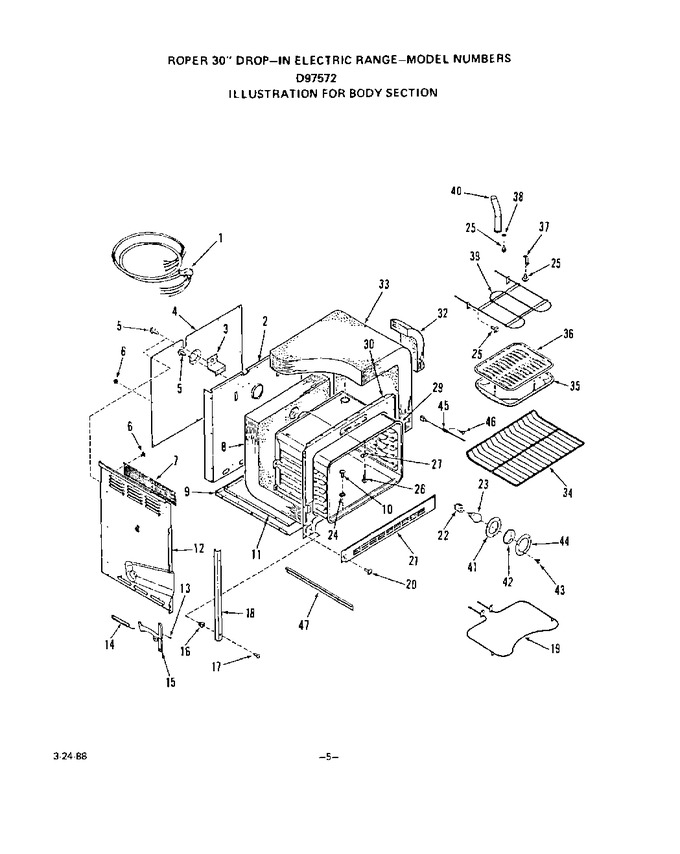

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	337220		Harness-conduit Wire		Appelez-nous	-
2	336077		Back-main		Appelez-nous	-
3	312987		Bracket-conduit Mounting		Appelez-nous	-
4	330920		Cover-wire		Appelez-nous	-
5	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
6	70588		Clip		Appelez-nous	-
7	333224		Screen-burner Box		Appelez-nous	-
8	308861		Insulation-oven Back & Bottom		Appelez-nous	-
9	330898		Bottom-main		Appelez-nous	-
10	69014		Screw 10abx1/2``		Appelez-nous	-
11	330872		Retainer-insulation (bottom)		Appelez-nous	-
12	337218		Retainer Insulation (sides) (right)		Appelez-nous	-
12	337316		Retainer Insulation (sides) (left)		Appelez-nous	-
13	331704		Screw		Appelez-nous	-
14	282681		Spring-oven Door		Appelez-nous	-
15	335600		Hinge-oven Door (left)		Appelez-nous	-
15	335599		Hinge-oven Door (right)		Appelez-nous	-
16	330905		Spacer-expansion		Appelez-nous	-
17	282634		Screw 8abx3/4``		Appelez-nous	-
18	330904		Trim-side (right)		Appelez-nous	-
18	330903		Trim-side (left)		Appelez-nous	-
19	335912		Element-bake (240 Volt)		Appelez-nous	-
19	335913		Element-bake (208 Volt (optional))		Appelez-nous	-
20	316849		Screw-10-32x1/2``		Appelez-nous	-
21	331515		Trim-bottom		Appelez-nous	-
22	330901		Holder-oven Lamp		Appelez-nous	-
23	339665		Oven Lamp		Appelez-nous	-
24	21067		Washer		Appelez-nous	-
25	326974		Scerw 10-32x17/32``		Appelez-nous	-
26	327320		Screw 10-16x7/16``		Appelez-nous	-
27	304835		Cover		Appelez-nous	-
28	321539		Retainer-thmst. Bulb (2 Req)		Appelez-nous	-
29	331458		Oven Body		Appelez-nous	-
30	336176		Front Frame		Appelez-nous	-
32	316951		Insulation		Appelez-nous	-
33	308860		Insulation-oven Wrap		Appelez-nous	-
34	326069		Rack-oven		Appelez-nous	-
35	331592		Pan-broiler		Appelez-nous	-
36	326297		Grid-broiler Pan		Appelez-nous	-
37	324808		Supprot-broil Element		Appelez-nous	-
38	335178		Washer		Appelez-nous	-
39	319527		Element-broil (208 Volt (optional))		Appelez-nous	-
39	ET342		Element-broil (240 Volt)   (Replaces: 319526)				$ 49.95
40	333581		Tube-vent		Appelez-nous	-
41	229371		Gasket-lens		Appelez-nous	-
42	114989		Lens-oven Lamp		Appelez-nous	-
43	69014		Screw 10abx1/2``		Appelez-nous	-
44	229372		Retainer-oven Light Lens		Appelez-nous	-
45	12001656		Sensor   (Replaces: 334300)			Immediately	$ 39.55
46	120855		Screw 6-20x3/8``		Appelez-nous	-
47	316928		Burner Box Side Trim		Appelez-nous	-
