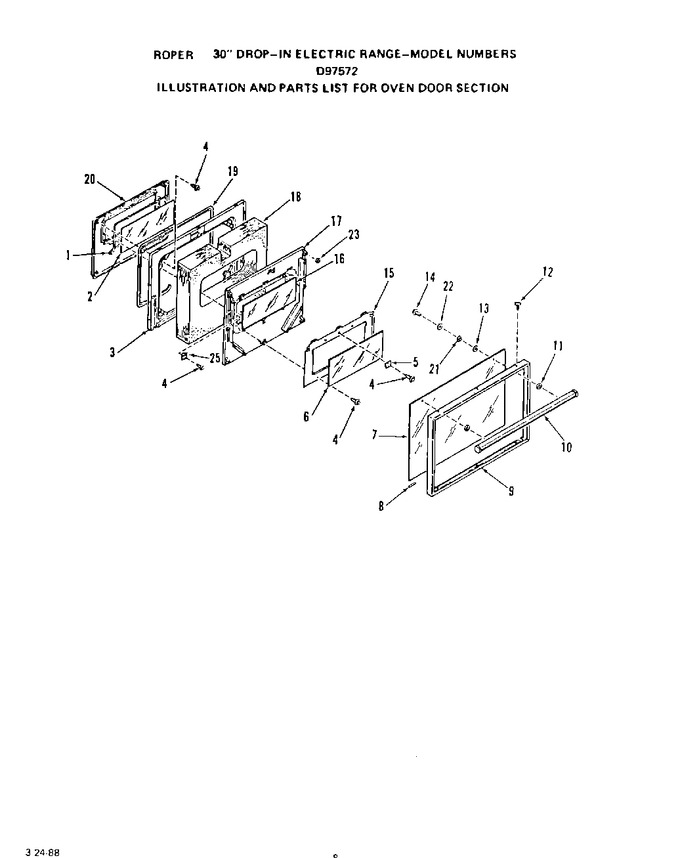

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302935		Inner Glass Seal		Appelez-nous	-
2	336442		Inner Door Glass		Appelez-nous	-
3	331624		Door Lining		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	326009		Glass Retainer		Appelez-nous	-
6	326088		Intermediate Door Glass		Appelez-nous	-
7	332067		Outer Door Glass		Appelez-nous	-
8	112370		Cushion (3 Req)		Appelez-nous	-
9	332065		Oven Door Frame		Appelez-nous	-
10	332452		Handle		Appelez-nous	-
11	DE81-05147A		Spacer, Door Handle   (Replaces: 107158)				$ 205.79
12	331704		Screw		Appelez-nous	-
13	333014		Washer		Appelez-nous	-
14	300864		Screw 10-32x3/4``		Appelez-nous	-
15	328615		Mounting Plate		Appelez-nous	-
16	338108		Center Door Glass		Appelez-nous	-
17	338326		Insulation Retainer		Appelez-nous	-
18	335782		Insulation		Appelez-nous	-
19	292244		Door Gasket		Appelez-nous	-
20	335165		Door Lining Plug		Appelez-nous	-
21	333015		Glasss Spacer		Appelez-nous	-
22	99279		Washer		Appelez-nous	-
23	335178		Felt Washer		Appelez-nous	-
25	312888		Retainer		Appelez-nous	-
