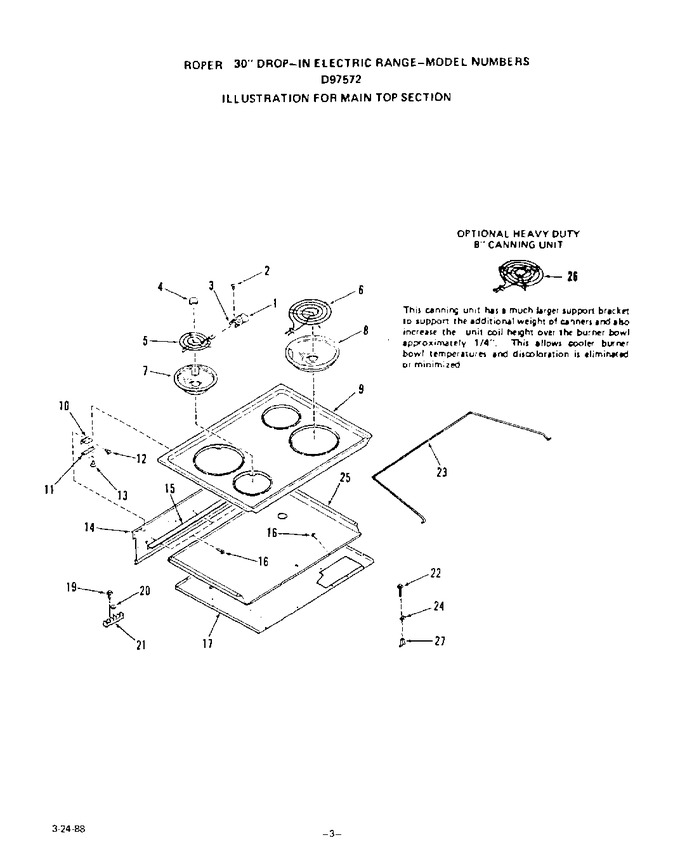

03 - Main Top


04 - Body


05 - Power Lock


06 - Oven Door


07 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330031		Terminal Block W/wires   (Replaces: 318960)			Immediately	$ 14.48
2	299632		Screw 7-32x5/16``		Appelez-nous	-
3	318872		Terminal Block Clip		Appelez-nous	-
4	319704		Medallion		Appelez-nous	-
5	PS15-4BK		Surface Element 6``   (Replaces: 325510)			Immediately	$ 35.96
6	PS26-4BK		Surface Element 8``   (Replaces: 325506)			Immediately	$ 40.46
7	WPW10196406		Burner Bowl 6``   (Replaces: 296481)			Immediately	$ 12.05
8	WPW10196405		Burner Box 8``   (Replaces: 304969)			Immediately	$ 15.56
9	330884		Main Top (chrome)		Appelez-nous	-
9	307202		Main Top (white)		Appelez-nous	-
9	313028		Main Top (almond)		Appelez-nous	-
10	315568		Main Top Hinge		Appelez-nous	-
11	315782		Hinge Mounting Bracket				$ 222.63
12	286628		Screw 10-32x5/16``		Appelez-nous	-
13	293121		Screw 6-32x1/4``		Appelez-nous	-
14	333020		Cover-upper Wire		Appelez-nous	-
15	333022		Rear Wire Shield		Appelez-nous	-
16	327320		Screw		Appelez-nous	-
17	336097		Burner Box Bottom		Appelez-nous	-
19	313190		Screw 10-32x1``		Appelez-nous	-
20	97816		Hex Nut		Appelez-nous	-
21	290105		Junction Block		Appelez-nous	-
22	323296		Screw 10-32 X 2``		Appelez-nous	-
23	338683		Main Top Support Rod		Appelez-nous	-
24	106885		Clip		Appelez-nous	-
25	338230		Burner Box Top		Appelez-nous	-
26	326786		Optional Heavy Duty 8`` Canning Element (240 Volt)		Appelez-nous	-
26	WPY04100165		Optional Heavy Duty 8`` Canning Element (208 Volt (optional))   (Replaces: 326787)			Immediately	$ 50.62
27	297007		Spacer		Appelez-nous	-
