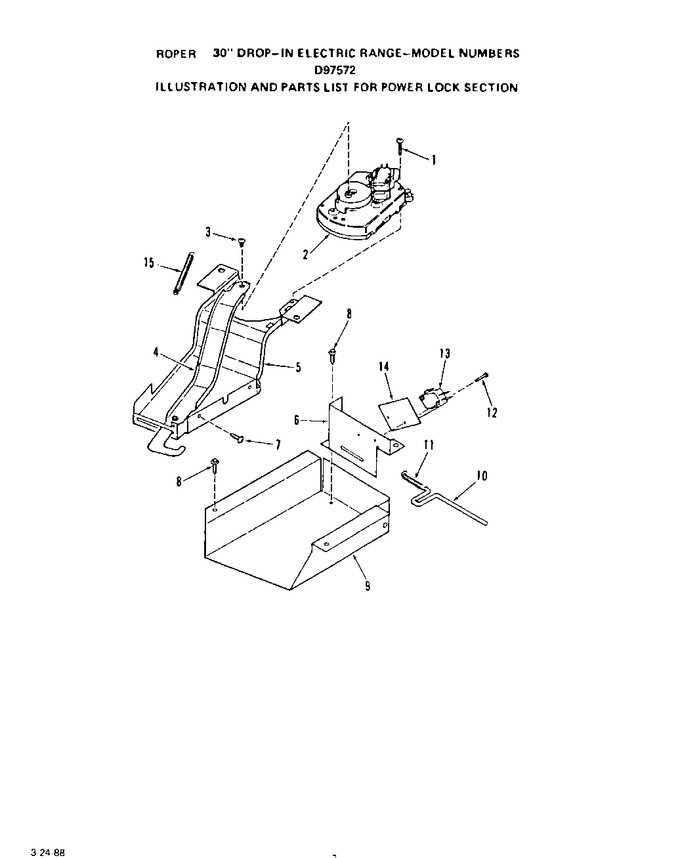

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 103439 | Screw 8 - 32 X 850 |
|
- | |||||
| 2 | 338249 | Lock Motor Asm |
|
- | |||||
| 3 | 232183 | Screw 8-32x3/8`` |
|
- | |||||
| 4 | 337971 | Lock Lever Asm |
|
- | |||||
| 5 | 337937 | Door Lock Plate |
|
- | |||||
| 6 | 337752 | Door Switch Bracket |
|
- | |||||
| 7 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 8 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 9 | 337485 | Lock Box |
|
- | |||||
| 10 | 337771 | Switch Actuator Pin |
|
- | |||||
| 11 | 337834 | Spring |
|
- | |||||
| 12 | 328956 | Screw 4-40x11/16`` |
|
- | |||||
| 13 | 334078 | Micro Switch |
|
- | |||||
| 14 | 329171 | Insulator |
|
- | |||||
| 15 | 337933 | Lock Spring |
|
- |
