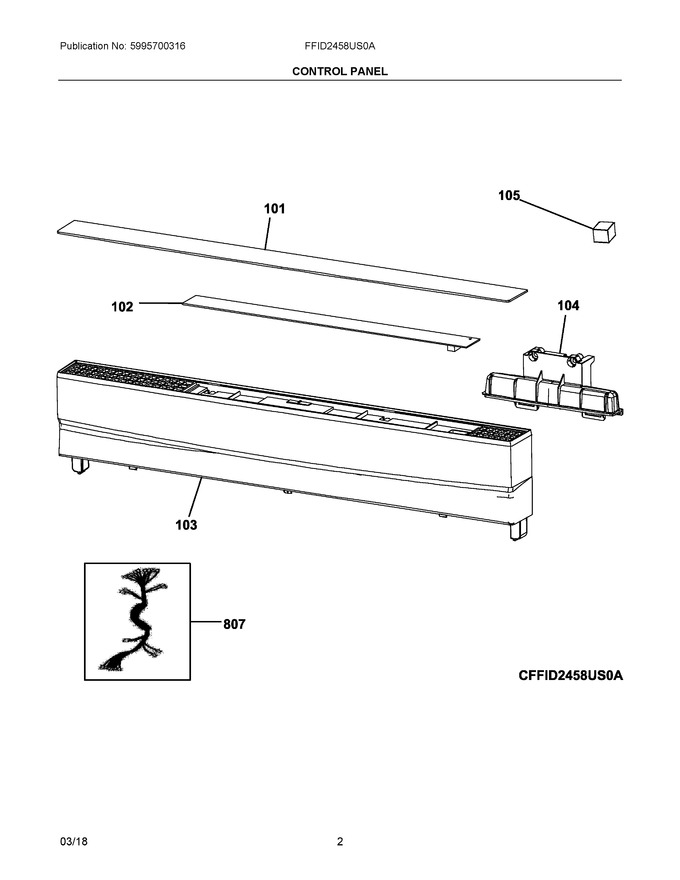

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | 5304516607 | Overlay, User Interface |
|
- | |||||
| 102 | 5304516608 | Control Assembly, User Interface |
|
- | |||||
| 103 | 5304516609 | Control Panel |
|
- | |||||
| 104 | 5304516610 | Handle, Latch Assembly |
|
- | |||||
| 105 | 5304516611 | Insulation, Foam |
|
- | |||||
| 807 | 5304516699 | Harness, Wiring, Main |
|
- |
