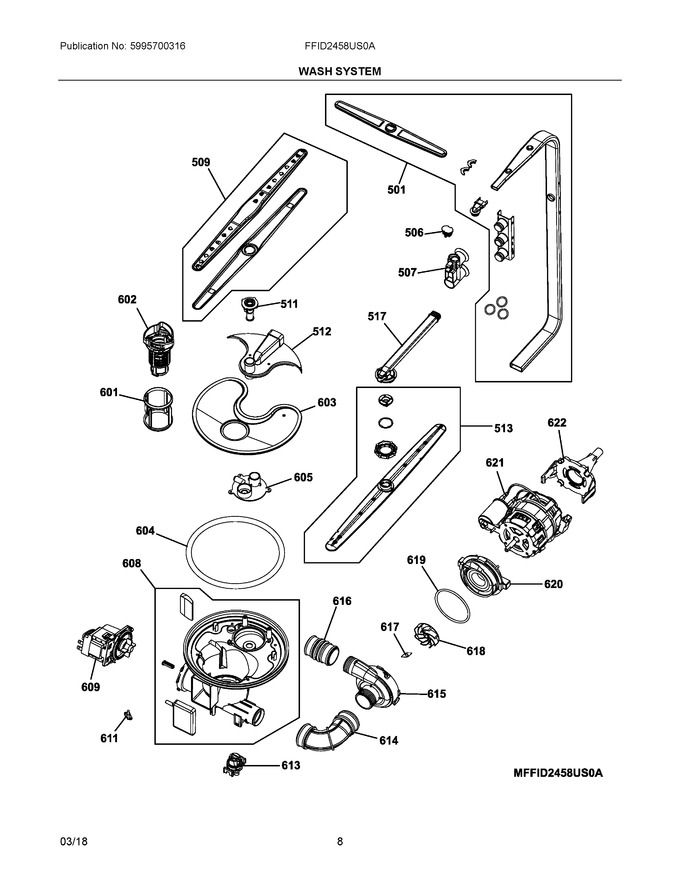

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
501	5304516668		Tube Assembly, Delivery, W/upr Spray Arm		Appelez-nous	-
506	5304516669		Cap, Dispenser		Appelez-nous	-
507	5304516670		Dispenser, Water		Appelez-nous	-
509	5304516671		Spray Arm, Assembly, Lower, W/shield		Appelez-nous	-
511	5304516672		Connector, Spray Arm, Lower		Appelez-nous	-
512	5304516673		Support, Spray Arm, Lower		Appelez-nous	-
513	5304516674		Spray Arm, Assembly, Middle		Appelez-nous	-
517	5304516675		Duct Assembly, Spray Arm, Middle		Appelez-nous	-
601	5304516676		Filter, Cylindrical		Appelez-nous	-
602	5304516677		Handle, Filter		Appelez-nous	-
603	5304516678		Filter Assembly, Plane		Appelez-nous	-
604	5304516679		Gasket, Sump		Appelez-nous	-
605	5304516680		Cover, Sump		Appelez-nous	-
608	5304516681		Sump, Assembly		Appelez-nous	-
609	5304516682		Pump, Drain		Appelez-nous	-
611	5304516683		Sensor, Thermistor		Appelez-nous	-
613	5304516684		Sensor, Turbidity		Appelez-nous	-
614	5304516685		Tube, Inlet			Immediately	$ 69.46
615	5304516686		Housing, Impeller			Immediately	$ 37.57
616	5304516687		Tube, Outlet			Immediately	$ 42.53
617	5304516688		Blade, Macerator		Appelez-nous	-
618	5304516689		Impeller		Appelez-nous	-
619	5304516690		Gasket, Pump		Appelez-nous	-
620	5304516691		Shell, Pump, Rear		Appelez-nous	-
621	5304516692		Pump Assembly, Induction		Appelez-nous	-
622	5304516693		Bracket, Pump		Appelez-nous	-
