01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Wash System
06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

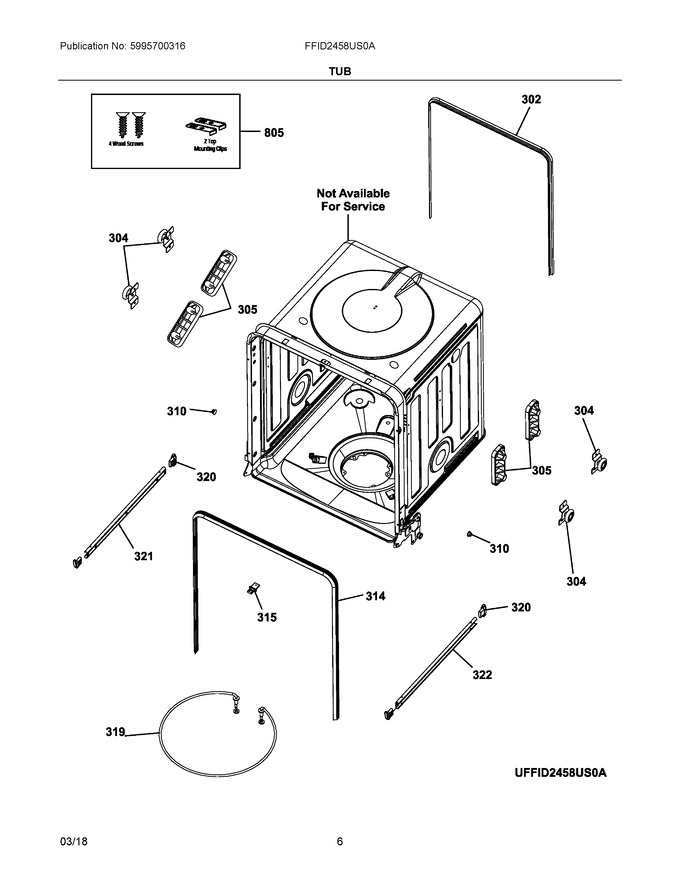

| 302 | 5304516624 | Insulation, Sound Absorb, Tub |
|
- | |||||
| 304 | 5304516625 | Roller Assembly, Rack Slide, (4) |
|
- | |||||
| 305 | 5304516626 | Guide Bracket, Tub Roller, (4) |
|
- | |||||
| 310 | 5304516627 | Cover, Tub, Side, (2) |
|
- | |||||
| 314 | 5304516628 | Gasket, Tub |
|
- | |||||
| 315 | 5304516629 | Hook Assembly, Door Latch |
|
- | |||||
| 319 | 5304516630 | Heater Assembly, Tub |
|
$ 207.49 | |||||
| 320 | 5304516631 | Cap, Rack Slide, Rear, (2) |
|
- | |||||
| 321 | 5304516632 | Rail Assembly, Upper Rack, Lh |
|
- | |||||
| 322 | 5304516633 | Rail Assembly, Upper Rack, Rh |
|
- | |||||
| 805 | 5304516698 | Bracket Kit, Top Cabinet, W/screws |
|
$ 24.19 |
