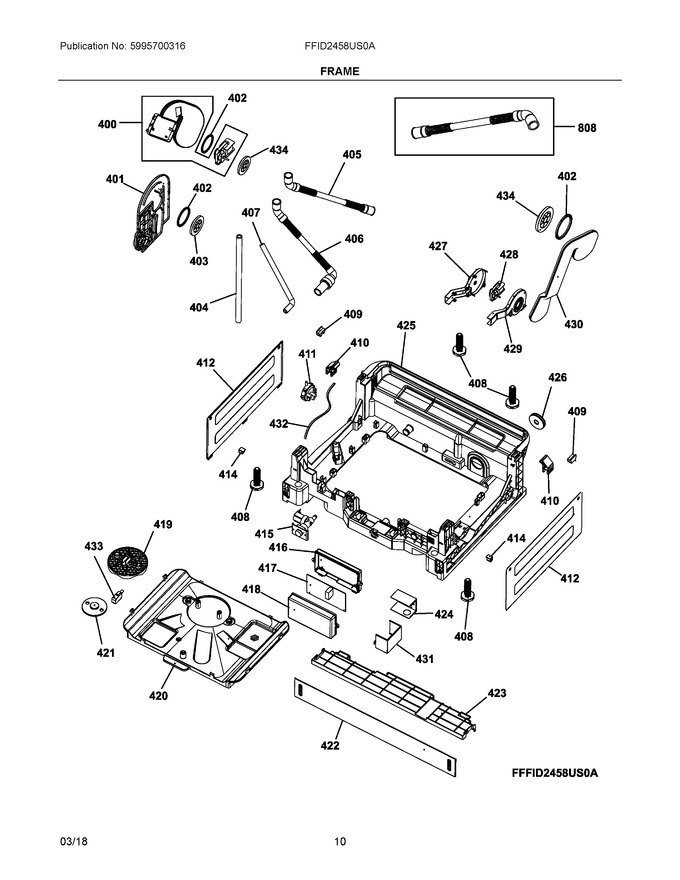

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 400 | 5304516634 | Gas Inlet Pipe, Assembly, W/motor |
|
- | |||||
| 401 | 5304516635 | Air Breather, Assembly |
|
- | |||||
| 402 | 5304516636 | Gasket, Washer, (3) |
|
$ 11.71 | |||||
| 403 | 5304516667 | Nut, Air Breather, (2) |
|
- | |||||
| 404 | 5304516638 | Tube, Connecting, Inlet Valve |
|
- | |||||
| 405 | 5304516639 | Tube, Drain, Inner, Air Break-base |
|
Immediately | $ 51.34 | ||||
| 406 | 5304516640 | Tube, Drain, Inner, Air Break-sump |
|
- | |||||
| 407 | 5304516641 | Tube, Inlet |
|
- | |||||
| 408 | 5304516642 | Leg, Leveling, (4) |
|
$ 15.90 | |||||
| 409 | 5304516643 | Support, Tub, (2) |
|
- | |||||
| 410 | 5304516644 | Block, Tub Connecting, (2) |
|
$ 15.18 | |||||
| 411 | 5304516645 | Switch, Pressure |
|
Immediately | $ 96.14 | ||||
| 412 | 5304516646 | Panel, Side, (2) |
|
- | |||||
| 414 | 5304516647 | Block, Support, Side Board, (2) |
|
- | |||||
| 415 | 5304516648 | Valve, Water Inlet |
|
- | |||||
| 416 | 5304516649 | Box, Main Board |
|
- | |||||
| 417 | 5304516650 | Main Board, Assembly |
|
- | |||||
| 418 | 5304516651 | Cover, Main Board |
|
- | |||||
| 419 | 5304516652 | Seat Bracket, Float |
|
- | |||||
| 420 | 5304516653 | Cover, Base Tray |
|
- | |||||
| 421 | 5304516654 | Float |
|
$ 15.33 | |||||
| 422 | 5304516655 | Kickplate |
|
- | |||||
| 423 | 5304516656 | Brace, Cross Piece, Lower Front |
|
- | |||||
| 424 | 5304516657 | Box, Junction A |
|
- | |||||
| 425 | 5304516658 | Base Tray, Assembly |
|
- | |||||
| 426 | 5304516659 | Gasket, Waterproof Case |
|
- | |||||
| 427 | 5304516660 | Housing, Blower |
|
- | |||||
| 428 | 5304516661 | Motor, Blower, Dc, Brushless |
|
- | |||||
| 429 | 5304516662 | Fan Assembly, Blower |
|
- | |||||
| 430 | 5304516663 | Duct Assembly, Drying |
|
- | |||||
| 431 | 5304516664 | Box, Junction B |
|
$ 19.52 | |||||
| 432 | 5304516665 | Tube, Pressure Switch |
|
- | |||||
| 433 | 5304516666 | Switch, Float |
|
$ 38.12 | |||||
| 434 | 5304516637 | Nut, Inlet Gas Pipe |
|
- | |||||
| 808 | 5304516700 | Hose, Back |
|
- |
