SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel

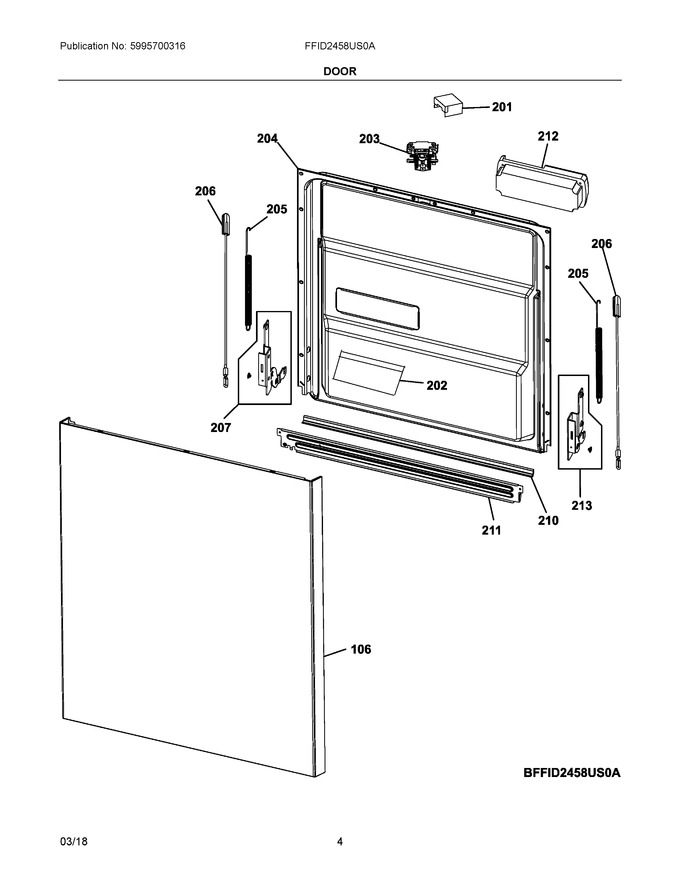

03 - Door
04 - Tub
05 - Wash System
06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 106 | 5304516612 | Door, Outer, Stainless |
|
- | |||||
| 201 | 5304516613 | Cover, Film |
|
- | |||||
| 202 | 5304516614 | Cover, Film |
|
- | |||||
| 203 | 5304516615 | Latch Assembly, Door, W/switch |
|
- | |||||
| 204 | 5304516616 | Liner Assembly, Door, Inner |
|
- | |||||
| 205 | 5304516617 | Spring, Door, (2) |
|
- | |||||
| 206 | 5304516618 | Cable, Door, (2) |
|
Immediately | $ 23.86 | ||||
| 207 | 5304516619 | Hinge Assembly, Lh, W/spacer |
|
- | |||||
| 210 | 5304516620 | Sealing Strip, Wiper |
|
- | |||||
| 211 | 5304516621 | Support Assembly, Hinge |
|
- | |||||
| 212 | 5304516622 | Dispenser Assembly, Detergent |
|
- | |||||
| 213 | 5304516623 | Hinge Assembly, Rh, W/spacer |
|
- |
