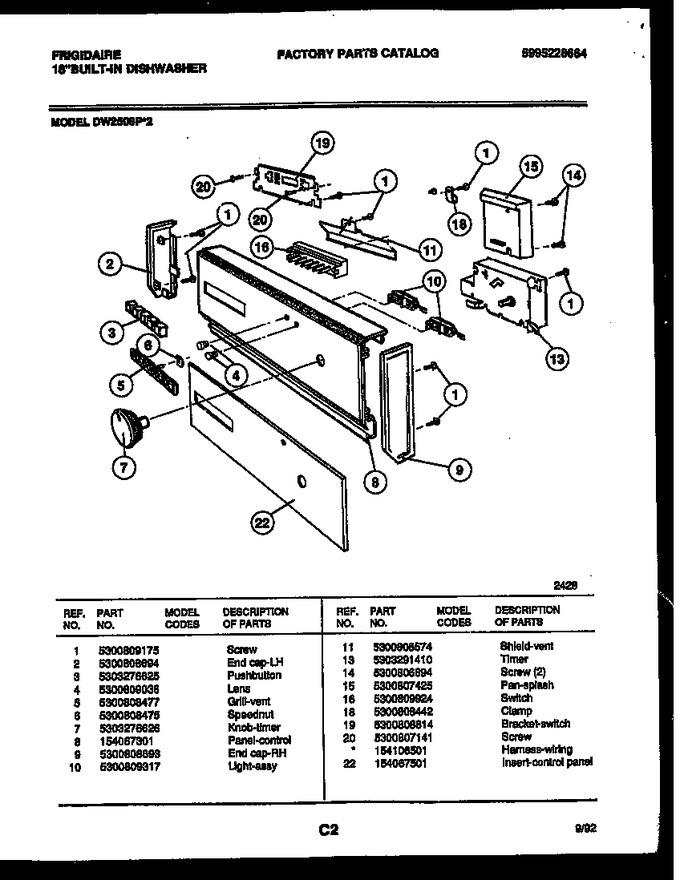

02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 2 | 5300808694 | End Cap-lh |
|
- | |||||
| 3 | 5303276625 | Pushbutton |
|
- | |||||
| 4 | 5300809036 | Lens |
|
$ 20.90 | |||||
| 5 | 5300808477 | Grill-vent |
|
- | |||||
| 6 | 5300808475 | Speednut |
|
- | |||||
| 7 | 5303276626 | Knob-timer |
|
- | |||||
| 8 | 154067301 | Panel-control |
|
- | |||||
| 9 | 5300808693 | End Cap-rh |
|
- | |||||
| 10 | 5300809317 | Light Assy |
|
- | |||||
| 11 | 5300808574 | Shield-vent |
|
- | |||||
| 13 | 5303291410 | Timer |
|
$ 237.56 | |||||
| 14 | 5300806894 | Screw (2) |
|
- | |||||
| 15 | 5300807425 | Pan-splash |
|
- | |||||
| 16 | 5300809924 | Switch |
|
- | |||||
| 18 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 19 | 5300808814 | Bracket-switch |
|
- | |||||
| 20 | 5300807141 | Screw |
|
- | |||||
| 22 | 154067501 | Insert-control Panel |
|
- | |||||
| 20A | 154106501 | Harness-wiring (non-illustrated) |
|
- |
