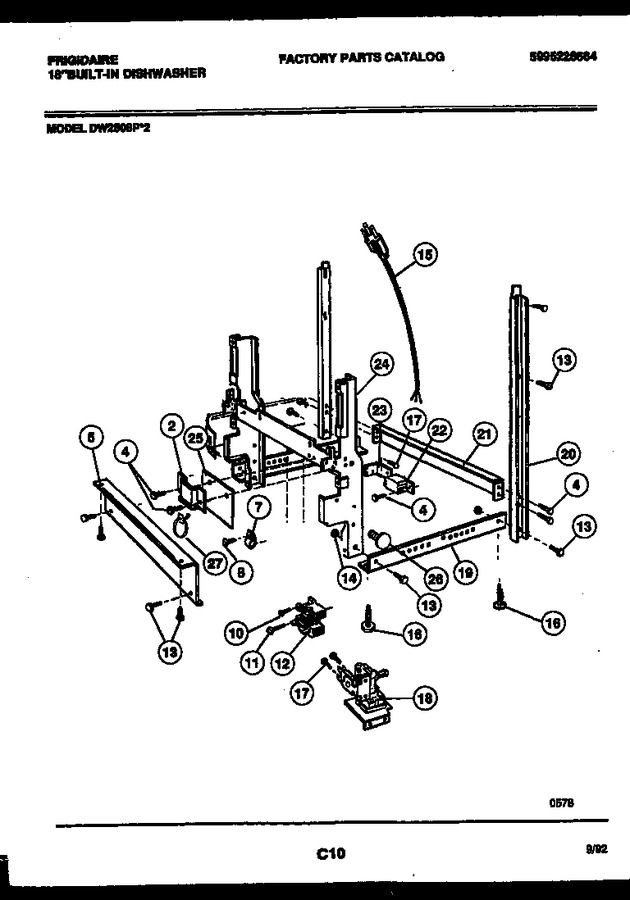

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5300806723		Clamp - Wire		Appelez-nous	-
4	5300809864		Screw		Appelez-nous	-
5	5300807559		Toeplate				$ 31.76
7	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
8	5300807501		Screw		Appelez-nous	-
10	3018140		Screw		Appelez-nous	-
11	5300804672		Screw		Appelez-nous	-
12	5300805255		Relay - Motor		Appelez-nous	-
13	5303013944		Screw		Appelez-nous	-
14	5300804619		Nut		Appelez-nous	-
15	5300808395		Power Cord		Appelez-nous	-
16	5300809422		Leveler		Appelez-nous	-
17	5300807004		Screw		Appelez-nous	-
18	5300809241		Valve-water Inlet		Appelez-nous	-
19	5300807564		Side Base Angle Kit		Appelez-nous	-
20	5300808670		Support Channel		Appelez-nous	-
21	3018150		Brace-rear		Appelez-nous	-
22	08057593		Cover-junction Box		Appelez-nous	-
23	5300807019		Bracket-junction Box		Appelez-nous	-
24	5300809212		Hinge Weld Assy		Appelez-nous	-
25	5300809144		Shield - Wire		Appelez-nous	-
26	5300809711		Retainer-insulation		Appelez-nous	-
27	5304464772		Tie - Wire   (Replaces: 5300809418)				$ 10.63
12A	154109801		Shield-relay (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
