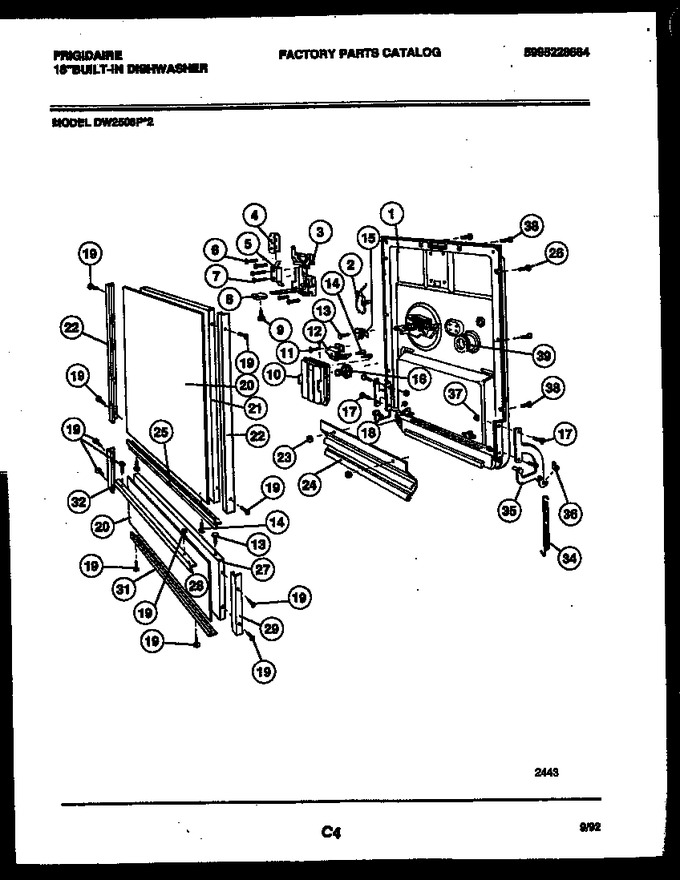

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809635		Door Assy		Appelez-nous	-
2	5300809075		Tie		Appelez-nous	-
3	5300809832		Latch Assy.		Appelez-nous	-
4	5300807450		Cover - Switch		Appelez-nous	-
5	5300807043		Switch		Appelez-nous	-
6	5300809029		Screw		Appelez-nous	-
7	5300806618		Screw		Appelez-nous	-
8	5300808712		Knob - Latch				$ 31.71
9	5300808715		Screw		Appelez-nous	-
10	5300806753		Body Assy.				$ 69.93
11	5300809898		Plunger				$ 36.49
12	5300809782		Bi-metal				$ 47.51
13	154419403		Screw   (Replaces: 5300808658)				$ 13.10
14	5300807501		Screw		Appelez-nous	-
15	5300807213		Terminal Ground		Appelez-nous	-
16	5300809916		Plug-dispenser		Appelez-nous	-
17	5300803311		Screw (4)		Appelez-nous	-
18	5300807539		Arm Assy-lh				$ 7.88
19	5300809696		Screw		Appelez-nous	-
20	5300808923		Inserts-door & Access Panel Black/almond		Appelez-nous	-
21	5300808298		Panel-door-white		Appelez-nous	-
22	5303943080		Trim-door Rh/lh Kit		Appelez-nous	-
23	5300809695		Speed Nut		Appelez-nous	-
24	5300809636		Baffle-seal		Appelez-nous	-
25	5300809637		Trim-door Bottom		Appelez-nous	-
26	5300808749		Screw		Appelez-nous	-
27	5300808304		Panel-access-white		Appelez-nous	-
28	5300808471		Trim-access Top				$ 27.35
29	5300809914		Trim - Access Rh		Appelez-nous	-
31	154043802		Trim-access Bottom				$ 50.24
32	5300809915		Trim - Access Lh		Appelez-nous	-
34	5300807601		Spring-door				$ 74.42
35	5300807538		Arm Assy-rh		Appelez-nous	-
36	5300805884		Pad-spring		Appelez-nous	-
37	5300808470		Nut (4)		Appelez-nous	-
38	5300809055		Screw (8)				$ 1.21
39	5300805631		Grommet				$ 6.29

    View Diagram in Separate Window       Print Part List
