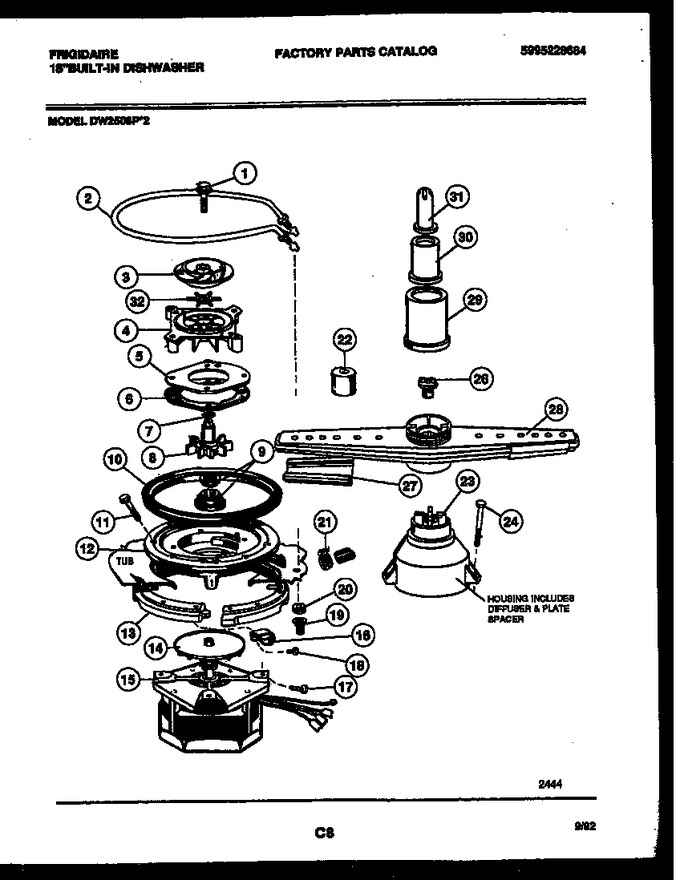

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300806353		Screw				$ 12.06
2	5303291411		Heater (includes 19 And 20)		Appelez-nous	-
3	5300809918		Impeller-upper				$ 83.45
4	5300809921		Plate-spacer				$ 12.39
5	5300807884		Plate-pump				$ 48.51
6	5300807709		Gasket-pump				$ 54.26
7	5300806521		O-ring				$ 32.42
8	5300809909		Pump Seal Kit (includes 7 & 9)				$ 71.56
9	5300803903		Water Seal				$ 109.86
10	5300809008		Gasket				$ 4.99
11	5300807268		Screw				$ 5.93
12	5300809919		Pump Housing		Appelez-nous	-
13	5300807712		Clamp Ring (2)		Appelez-nous	-
14	5300809366		Watershield Assy				$ 2.26
15	5300809984		Motor Assy		Appelez-nous	-
16	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
17	5300809022		Screw		Appelez-nous	-
18	5300807270		Screw				$ 6.72
19	154106202		Heater-nut   (Replaces: 154106201)			Immediately	$ 18.32
20	5300806833		Heater Grommet				$ 5.34
21	5300808186		Hose Clamp		Appelez-nous	-
22	5300803923		Seal Installation Tool				$ 57.38
23	5300809953		Upper Housing Assy-includes Diffuser		Appelez-nous	-
24	5300807359		Screw		Appelez-nous	-
26	5300809018		Spray Arm Bolt		Appelez-nous	-
27	3015604		Shield-spray Arm		Appelez-nous	-
28	154039501		Spray Arm Assy		Appelez-nous	-
29	5300808178		Tower Base		Appelez-nous	-
30	5300808179		Tower Section				$ 14.02
31	5300808849		Tower Tip		Appelez-nous	-
32	5300809920		Macerator				$ 49.19
28A	5300809937		Valve-check (non-illustrated)				$ 74.71
