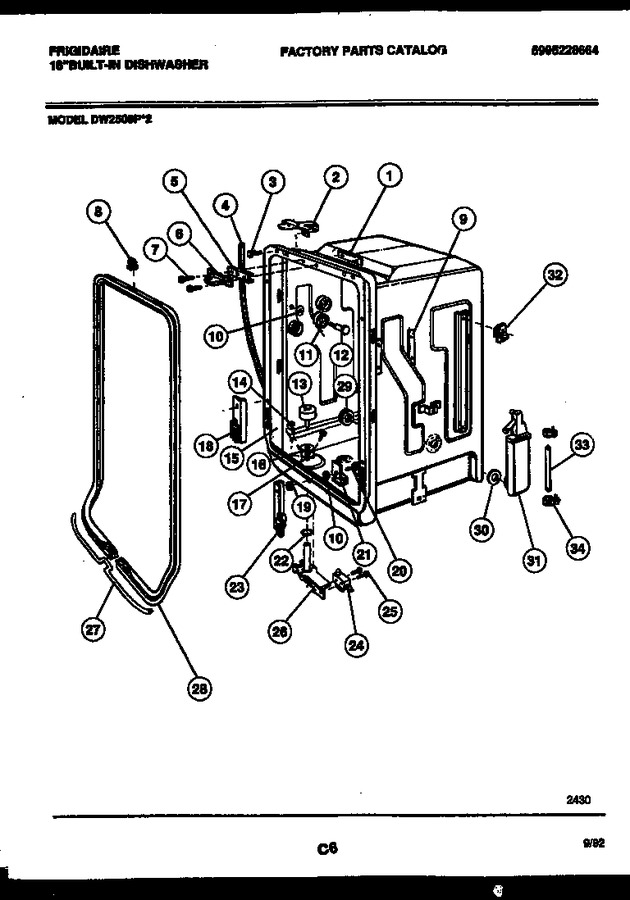

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300808868		Plate - Latch		Appelez-nous	-
2	5300808289		Clip				$ 5.51
3	5300806894		Screw		Appelez-nous	-
4	3100021801		Hose-drain (corrugated)				$ 73.00
5	5300809214		Shim - Strike		Appelez-nous	-
6	5300807015		Strike - Door		Appelez-nous	-
7	131302901		Screw   (Replaces: 5300806890)				$ 4.96
8	5300805763		Tub Gasket Clip Kit (includes 21)		Appelez-nous	-
9	5300807038		Plate (4)				$ 4.94
10	5300809044		Washer		Appelez-nous	-
11	5304507405		Roller-tub   (Replaces: 154080001)			Immediately	$ 25.79
12	5300808564		Screw & Washer Kit (includes 10)				$ 34.02
13	154112701		Float		Appelez-nous	-
14	154103701		Screw		Appelez-nous	-
15	5300809716		Tub & Gasket Assy		Appelez-nous	-
16	5300808064		Plate - Float		Appelez-nous	-
17	5300808063		Gasket - Float				$ 6.14
18	5300807599		Arm Guide Lh		Appelez-nous	-
19	5300803346		Nut		Appelez-nous	-
20	5300803319		Screw		Appelez-nous	-
21	5300808115		Clip		Appelez-nous	-
22	5300807759		O - Ring				$ 4.88
23	5300807600		Arm Guide-rh		Appelez-nous	-
24	5300809863		Switch - Float				$ 65.73
25	5300809864		Screw		Appelez-nous	-
26	5300809859		Float Switch Kit (includes 13, 16, 17, 22 & 25)		Appelez-nous	-
27	154059402		Rod		Appelez-nous	-
28	5300809633		Tub Gasket & Wire (includes 8 & 27)				$ 201.76
29	5300805669		Nut		Appelez-nous	-
30	5300803573		Gasket-inlet		Appelez-nous	-
31	5300806470		Inlet Water		Appelez-nous	-
32	5300806291		Nut		Appelez-nous	-
33	5300807891		Tubing - Inlet (includes 34)		Appelez-nous	-
34	5300807813		Clamp		Appelez-nous	-
*66121	154641601		Tub Insulation   (Replaces: 5303208369)				$ 6.15
