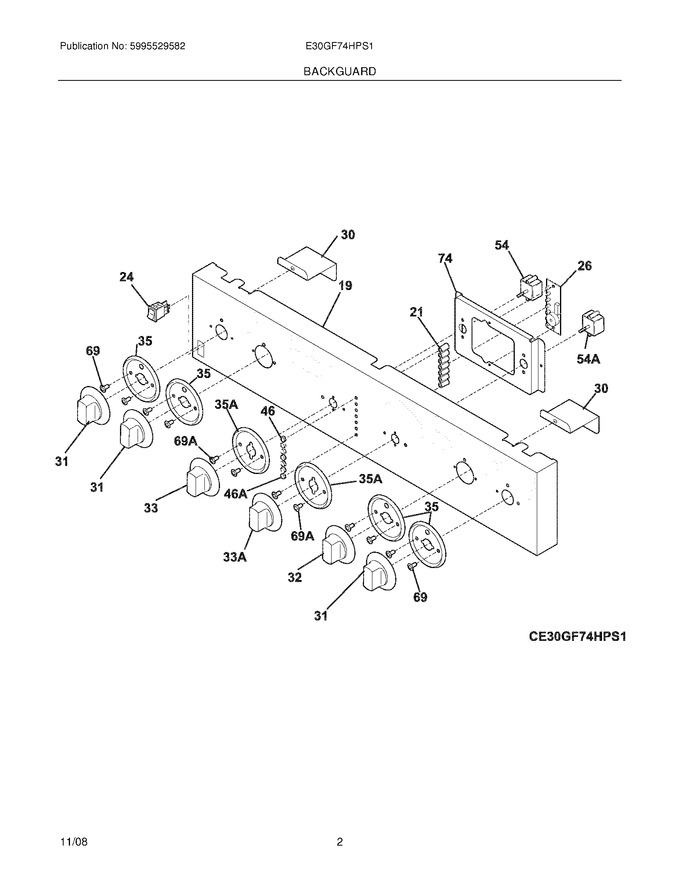

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	7318285722		Panel,control ,stainless		Appelez-nous	-
21	7318389500		Retainer,lens		Appelez-nous	-
30	7318377000		Support,control Panel ,(2)		Appelez-nous	-
31	7318242252		Knob,control ,stainless ,(3)		Appelez-nous	-
32	7318242253		Knob,control ,stainless ,dual		Appelez-nous	-
33	7318242230		Knob,selector		Appelez-nous	-
35	7318251911		Skirt,(6)		Appelez-nous	-
46	7318044501		Lens,indicator Light ,blue ,(5)		Appelez-nous	-
69	75303300265		Screw,8-18 X 1/2 ,(4)		Appelez-nous	-
74	7318383901		Bracket,controls		Appelez-nous	-
33A	7318242231		Knob,control ,oven		Appelez-nous	-
35A	7318251912		Skirt,(2)		Appelez-nous	-
46A	7318228310		Lens,indicator Light ,(2)		Appelez-nous	-
69A	75303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
F24	75308015487		Switch,oven Light ,rocker		Appelez-nous	-
F26	75304452799		Board,indicator Light ,(2) ,led		Appelez-nous	-
F54	75304452797		Control,oven Selector		Appelez-nous	-
F54A	75304452798		Control,oven Temp.		Appelez-nous	-
FNI	7318532143		Harness,wiring ,display/control		Appelez-nous	-
FNI	7318532142		Harness,wiring ,relay Baord		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	316519700		Screw,truss Head ,8-18 X 0.375   (Replaces: 708016432)				$ 10.02

    View Diagram in Separate Window       Print Part List
