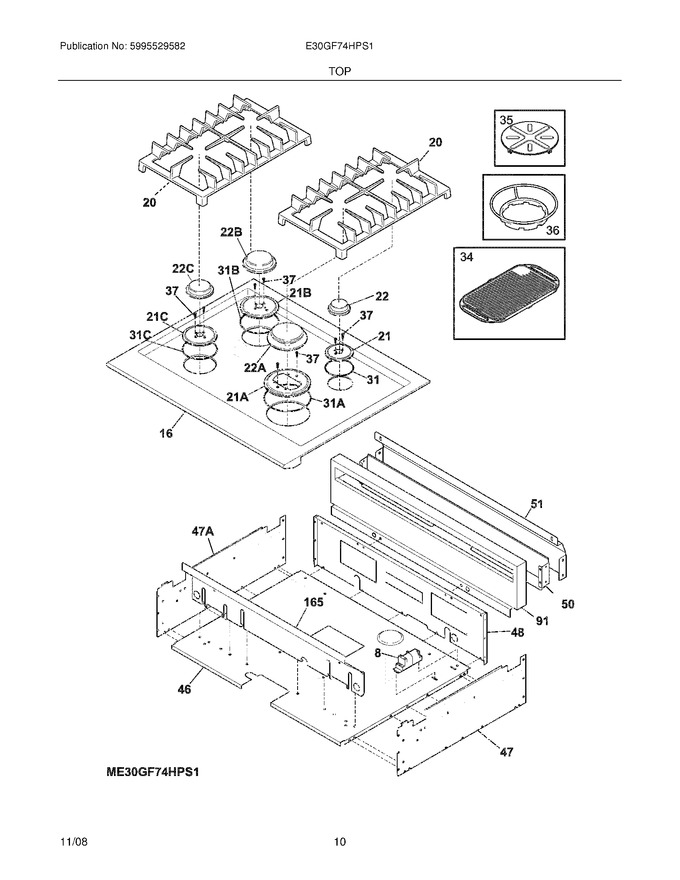

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	7318185224		Main Top Assy,frame/glass ,stainless/black		Appelez-nous	-
20	7318361403		Grate,top Burner ,black ,(2) ,double		Appelez-nous	-
21	7316514800		Skirt,5k Burner ,black		Appelez-nous	-
22	7316510902		Cap,5k Burner ,black		Appelez-nous	-
31	7316515200		Seal,5k Burner		Appelez-nous	-
34	7318251600		Griddle		Appelez-nous	-
35	7318254200		Simmer Plate		Appelez-nous	-
36	7318254300		Support,wok		Appelez-nous	-
37	7316240600		Screw,assy Mtg ,(8) ,ignitor/orifice		Appelez-nous	-
46	7318242930		Panel,bottom		Appelez-nous	-
47	7318241706		Panel,side ,rh		Appelez-nous	-
48	7318241812		Panel,rear		Appelez-nous	-
50	7318537400		Deflector,backsplash ,front		Appelez-nous	-
51	7318537501		Deflector,backsplash ,black ,rear		Appelez-nous	-
91	7318533400		Backsplash,stainless		Appelez-nous	-
165	7318355101		Deflector,heat		Appelez-nous	-
21A	7316515100		Skirt,18k Burner ,black		Appelez-nous	-
21B	7316515000		Skirt,14k Burner ,black ,(2)		Appelez-nous	-
21C	7316514900		Skirt,9.5k Burner ,black		Appelez-nous	-
22A	7316511502		Cap,18k Burner ,black ,(2)		Appelez-nous	-
22B	7316511302		Cap,14k Burner ,black ,(2)		Appelez-nous	-
22C	7316511102		Cap,9.5k Burner ,black		Appelez-nous	-
31A	316515203		Seal,18k Burner   (Replaces: 7316515203)				$ 70.31
31B	7316515202		Seal,14k Burner ,(2)		Appelez-nous	-
31C	7316515201		Seal,9.5k Burner		Appelez-nous	-
47A	7318241707		Panel,side ,lh		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 7316135701)			Immediately	$ 68.16
NI	75303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
NI	7318165800		Spacer		Appelez-nous	-
NI	75303211311		Screw,8 X 0.500		Appelez-nous	-
