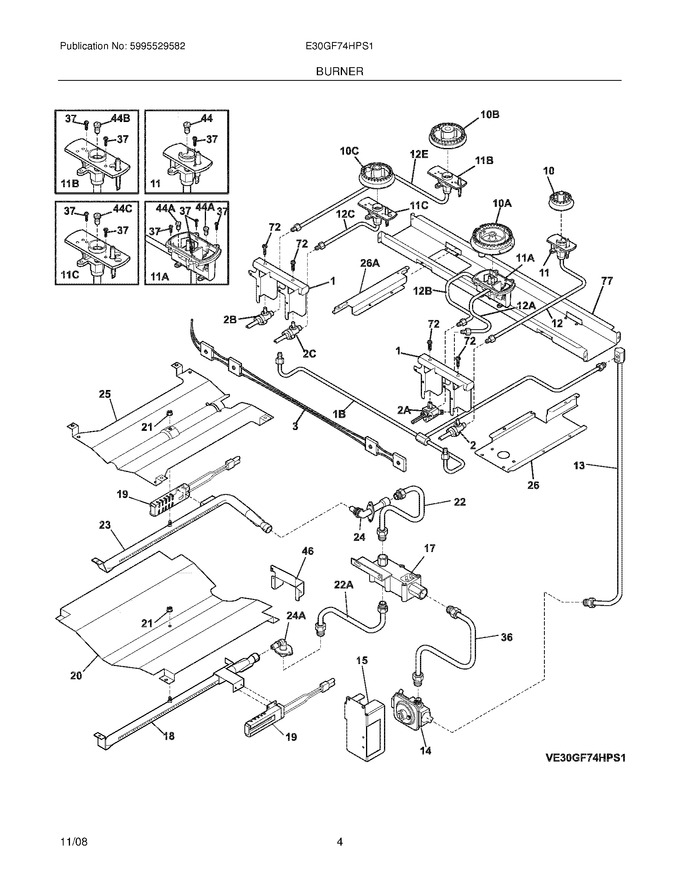

SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Maintop
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 7318376120 | Bracket,regulator |
|
- | |||||
| 20 | 7318290400 | Baffle,bake Burner |
|
- | |||||
| 21 | 75303323000 | Nut,keps |
|
- | |||||
| 25 | 7316401301 | Baffle,broil Burner |
|
- | |||||
| 26 | 7318363802 | Bracket,channel Mtg |
|
- | |||||
| 37 | 316540900 | Screw,ignitor Assy Mt ,6-32 X .62 (Replaces: 7316518100) |
|
Immediately | $ 15.17 | ||||
| 46 | 7318536250 | Protector,air Shutter |
|
- | |||||
| 72 | 7316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
- | |||||
| 77 | 7318355503 | Bracket,channel Mtg. |
|
- | |||||
| 26A | 7318363902 | Bracket,channel Mtg. |
|
- | |||||
| F1 | 7318357801 | Manifold,(2) |
|
- | |||||
| F10 | 7316510800 | Burner,sealed ,5k |
|
- | |||||
| F10A | 7316525400 | Burner,sealed ,dual ,18k |
|
- | |||||
| F10B | 7316511200 | Burner,sealed ,14k |
|
- | |||||
| F10C | 7316511000 | Burner,sealed ,9.5k |
|
- | |||||
| F11 | 7316524800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
- | |||||
| F11A | 7316525100 | Ignitor/orifice Assy.,top Burner ,18k ,w/holder |
|
- | |||||
| F11B | 7316525000 | Ignitor/orifice Assy.,top Burner ,14k ,w/holder |
|
- | |||||
| F11C | 7316524900 | Ignitor/orifice Assy.,top Burner ,9.5k ,(2),w/holder |
|
- | |||||
| F12 | 7318366727 | Tube,burner ,rh Rear ,5k |
|
- | |||||
| F12A | 7318366731 | Tube,18k Burner ,rh Front |
|
- | |||||
| F12B | 7318366732 | Tube,18k Burner ,rh Front |
|
- | |||||
| F12C | 7318366733 | Tube,9.5k Burner ,lh Front |
|
- | |||||
| F12E | 7318366728 | Tube,14k Burner ,lh Rear |
|
- | |||||
| F13 | 7318360620 | Tube,regulator ,to Manifold |
|
- | |||||
| F14 | 7316082907 | Regulator-pressure |
|
- | |||||
| F17 | 75303210798 | Valve,safety |
|
- | |||||
| F18 | 7318292210 | Burner,bake ,18000 |
|
- | |||||
| F19 | 7318177710 | Ignitor,oven Burner |
|
- | |||||
| F1B | 7318305402 | Tube,manifold ,3/8 ,interconnect |
|
- | |||||
| F2 | 7316520700 | Valve,burner ,5k |
|
- | |||||
| F22 | 7318305212 | Tube,broil Supply |
|
- | |||||
| F22A | 7318305211 | Tube,bake Supply |
|
- | |||||
| F23 | 7318292300 | Burner,broil ,14000 |
|
- | |||||
| F24 | 7316409703 | Elbow,mixer |
|
- | |||||
| F24A | 7318347219 | Mixer Elbow,bake |
|
- | |||||
| F2A | 316574900 | Valve,top Burner ,18k ,dual Port (Replaces: 7316412510) |
|
$ 242.16 | |||||
| F2B | 7316520703 | Valve,burner ,14.2k |
|
- | |||||
| F2C | 7316520701 | Valve,burner ,9.5k |
|
- | |||||
| F3 | 7318232634 | Wiring Harness,w/igntr Switch |
|
- | |||||
| F36 | 7318177812 | Tubing,oven Supply |
|
- | |||||
| F44 | 7316523504 | Orifice,top Burner ,5k |
|
- | |||||
| F44A | 7316523508 | Orifice,top Burner ,18k |
|
- | |||||
| F44B | 7316523506 | Orifice,top Burner ,14k |
|
- | |||||
| F44C | 7316523500 | Orifice,top Burner ,9.5k |
|
- | |||||
| FNI | 7318186919 | Lp Conversion Kit |
|
- | |||||
| FNI | 7318199782 | Wiring Harness,ignitor |
|
- | |||||
| NI | 75303323277 | Screw,8-18 X 13/32 |
|
- | |||||
| NI | 75303311333 | Screw,8-32 X 3/8 |
|
- | |||||
| NI | 75303311306 | Screw,8-18 X 0.375 ,(6) |
|
- |
