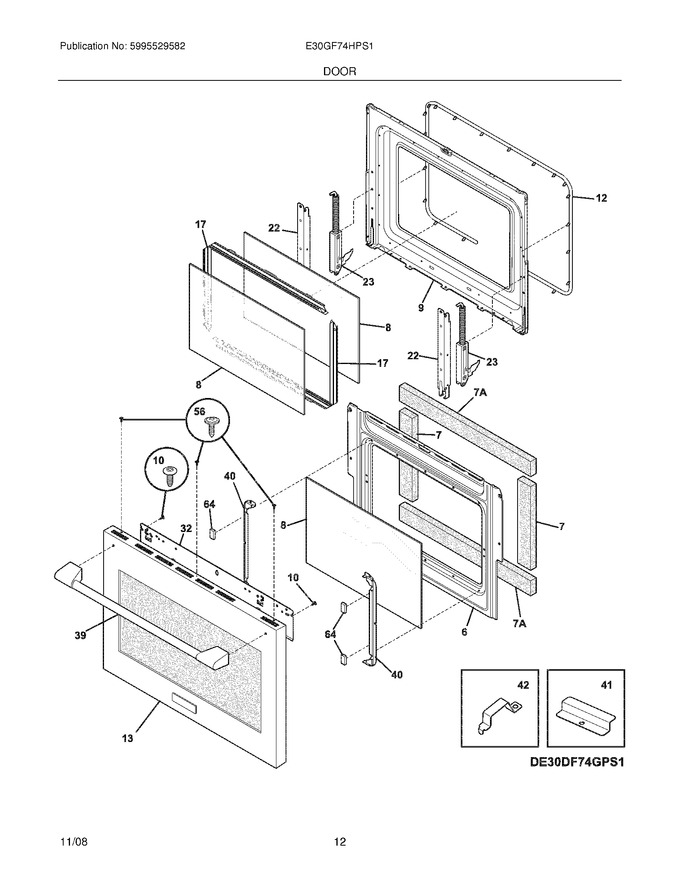

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	7318260522		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 7318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 7316117500)				$ 116.95
9	7318259633		Liner,oven Door		Appelez-nous	-
10	75304400794		Screw,handle Mtg ,10-32 X 3/4		Appelez-nous	-
12	318053132		Gasket,oven Door Seal   (Replaces: 7318053131)			Immediately	$ 159.56
13	7318344006		Door Assmebly,stainless/glass ,w/badge		Appelez-nous	-
17	7318264710		Spacer,glass ,lower ,(2)		Appelez-nous	-
22	7318353803		Retainer,hinge		Appelez-nous	-
23	7318244300		Hinge Assy		Appelez-nous	-
32	7318057204		Deflector,handle		Appelez-nous	-
39	7318392421		Handle,door		Appelez-nous	-
40	7318242702		Bracket,glass Holder ,door ,(2)		Appelez-nous	-
41	7318370600		Bracket,glass Retainer ,(2)		Appelez-nous	-
42	7318382301		Bracket,glass Retainer ,(4)		Appelez-nous	-
56	75304436875		Screw,8-18 X 1/2 ,black		Appelez-nous	-
64	7318165800		Spacer		Appelez-nous	-
7A	318372016		Insulation,door ,(2)   (Replaces: 7318372002)				$ 17.72
NI	75304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	75303300265		Screw,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	75304437044		Screw,10-32 X 1/4 ,black ,(4)		Appelez-nous	-
NI	316433603		Label,anti-tip				$ 3.55
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	75303211311		Screw,8 X 0.500		Appelez-nous	-
