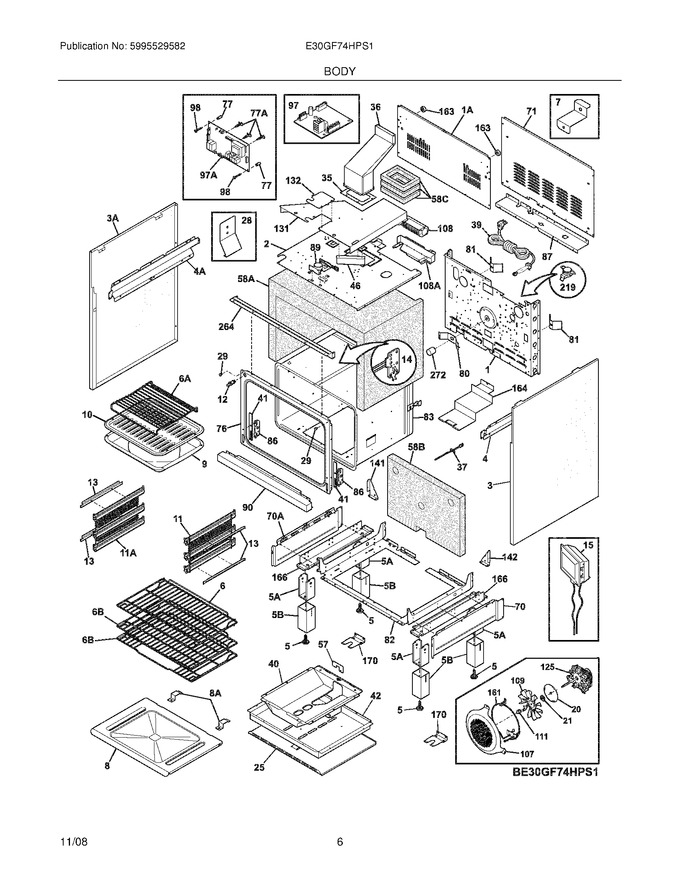

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Maintop
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7318259230 | Back,main |
|
- | |||||
| 2 | 7318258930 | Shield,insulation ,upper |
|
- | |||||
| 3 | 7318352702 | Panel,side ,stainless ,lh |
|
- | |||||
| 4 | 7318356002 | Panel,upper Side ,rh |
|
- | |||||
| 5 | 7318175506 | Screw,leveling |
|
- | |||||
| 6 | 7318240103 | Shelf,oven ,fixed |
|
- | |||||
| 7 | 7318533700 | Bracket,main Back ,(4) |
|
- | |||||
| 8 | 7318290502 | Panel,oven ,bottom |
|
- | |||||
| 9 | 7318138801 | Pan,broiler |
|
- | |||||
| 10 | 7318126401 | Insert,broiler Pan |
|
- | |||||
| 11 | 7318240016 | Glide & Support Assy,oven Shelves ,rh |
|
- | |||||
| 12 | 808136601 | Switch,oven Light ,door Frame (Replaces: 7316445501) |
|
Immediately | $ 44.04 | ||||
| 13 | 7318603913 | Bracket,ladder Mtg. ,(4) |
|
- | |||||
| 14 | 7318903401 | Switch,rack Sensing |
|
- | |||||
| 15 | 318241008 | Lamp,oven ,(2) ,halogen (Replaces: 7318241002) |
|
Immediately | $ 128.93 | ||||
| 20 | 7318389400 | Plate,retainer |
|
- | |||||
| 21 | 7318389000 | Seal,ring |
|
- | |||||
| 25 | 7318291900 | Bracket,shield ,lower |
|
- | |||||
| 28 | 7318369301 | Bracket,side Panel ,(2) |
|
- | |||||
| 29 | 318147430 | Bumper,(2) (Replaces: 7318147411) |
|
$ 18.95 | |||||
| 35 | 318291300 | Seal,flue Cavity |
|
- | |||||
| 36 | 318561201 | Flue Assembly |
|
- | |||||
| 39 | 7318144008 | Cord,service |
|
- | |||||
| 40 | 7318291800 | Box,oven Burner |
|
- | |||||
| 41 | 7318366601 | Spacer,front Frame |
|
- | |||||
| 42 | 7318288710 | Box,oven Burner |
|
- | |||||
| 46 | 318258905 | Deflector,air |
|
- | |||||
| 57 | 7318268300 | Cover,burner Opening |
|
- | |||||
| 70 | 7318302710 | Shield,insulation ,right ,(2) |
|
- | |||||
| 71 | 7318300910 | Panel,cover |
|
- | |||||
| 76 | 7318056232 | Front,oven |
|
- | |||||
| 77 | 7316247900 | Spacer,power Board |
|
- | |||||
| 80 | 75303320846 | Plate,oven Mtg |
|
- | |||||
| 81 | 7318192400 | Spring,oven |
|
- | |||||
| 82 | 7318258740 | Shield,insulation ,lower |
|
- | |||||
| 83 | 7318327023 | Liner,oven |
|
- | |||||
| 86 | 7318241406 | Receptacle,hinge ,(2) |
|
- | |||||
| 87 | 7318260621 | Bracket,cable Mtg. |
|
- | |||||
| 90 | 7318355001 | Trim,bottom ,stainless |
|
- | |||||
| 98 | 73201861 | Screw,6 X 0.375 ,(4) |
|
- | |||||
| 107 | 7318906601 | Cover,fan |
|
- | |||||
| 109 | 318398302 | Fan Blade (Replaces: 7318398300) |
|
Immediately | $ 29.11 | ||||
| 111 | 7318399800 | Nut-fan Retainer |
|
- | |||||
| 131 | 318272905 | Box,vent |
|
- | |||||
| 132 | 318003004 | Plate,shield |
|
- | |||||
| 141 | 318368402 | Bracket,reinforcement ,rh |
|
- | |||||
| 142 | 318368403 | Bracket,reinforcement ,lh |
|
- | |||||
| 163 | 318531700 | Spacer,(2) |
|
- | |||||
| 164 | 7318125310 | Plate,connection |
|
- | |||||
| 166 | 7318352501 | Bracket,leveling Leg ,(2) ,reinforcement |
|
- | |||||
| 170 | 318335701 | Anti-tip & Accessories |
|
$ 42.89 | |||||
| 264 | 7318257723 | Trim,oven ,black ,front |
|
- | |||||
| 272 | 7318249403 | Tube,protector |
|
- | |||||
| 11A | 7318240017 | Glide & Support Assy,oven Shelves ,lh |
|
- | |||||
| 1A | 7318353110 | Panel,back ,upper |
|
- | |||||
| 3A | 7318352703 | Panel,side ,stainless ,rh |
|
- | |||||
| 4A | 7318356003 | Panel,upper Side ,lh |
|
- | |||||
| 58A | 7318386103 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 7318362131 | Insulation,oven Back |
|
- | |||||
| 58C | 318362153 | Insulation,flue ,(3) |
|
- | |||||
| 5A | 7318368800 | Bracket,leveling Leg ,(4) |
|
- | |||||
| 5B | 7318352404 | Cover,leveling Leg ,(4) |
|
- | |||||
| 6A | 7318365800 | Rack,broiler Pan |
|
- | |||||
| 6B | 7318345404 | Shelf,oven ,extendable ,(2) |
|
- | |||||
| 70A | 7318302711 | Shield,insulation ,left ,(2) |
|
- | |||||
| 77A | 7316114100 | Spacer |
|
- | |||||
| 8A | 7318367401 | Bracket,retainer ,(2) |
|
- | |||||
| F108 | 7318251300 | Bracket,fan Support |
|
- | |||||
| F108 | 318073028 | Motor,blower (Replaces: 7318073028) |
|
$ 271.69 | |||||
| F125 | 5304463302 | Motor-convection (Replaces: 75304463302) |
|
Immediately | $ 259.95 | ||||
| F161 | 7318255503 | Element,convection ,350 W |
|
- | |||||
| F219 | 318003633 | Thermostat,safety |
|
$ 101.35 | |||||
| F37 | 316217002 | Probe,oven Temp (Replaces: 7316217002) |
|
Immediately | $ 61.23 | ||||
| F89 | 318261229 | Motor,latch Assy (Replaces: 7318261215) |
|
Immediately | $ 93.62 | ||||
| F97 | 7316519202 | Board,relay ,convection |
|
- | |||||
| F97A | 7316455710 | Board,power ,relay |
|
- | |||||
| FNI | 7318532123 | Harness,wiring ,main |
|
- | |||||
| NI | 75304436875 | Screw,8-18 X 1/2 ,black |
|
- | |||||
| NI | 7318370338 | Wiring Harness,latch |
|
- | |||||
| NI | 75304454881 | Screw,no.8-18 X 3/8 |
|
- | |||||
| NI | 75303325978 | Screw,shoulder Head ,8-18 X 1/2 |
|
- | |||||
| NI | 316519700 | Screw,truss Head ,8-18 X 0.375 (Replaces: 708016432) |
|
$ 10.02 | |||||
| NI | 75304461333 | Screw,10-32 X 17/32 |
|
- | |||||
| NI | 75303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 75303131801 | Screw,10 X 3/8 |
|
- | |||||
| NI | 75303325980 | Screw,10-32 X 0.437 |
|
- | |||||
| NI | 75304400192 | Retainer Wire |
|
- | |||||
| NI | 7318165800 | Spacer |
|
- | |||||
| NI | 73051050 | Screw,shoulder |
|
- | |||||
| NI | 75303211311 | Screw,8 X 0.500 |
|
- | |||||
| NI | 75303300265 | Screw,8-18 X 1/2 ,(4) |
|
- | |||||
| NI | 75303311306 | Screw,8-18 X 0.375 ,(6) |
|
- | |||||
| NI | 75303311333 | Screw,8-32 X 3/8 |
|
- | |||||
| NI | 75303323136 | Screw Ground |
|
- | |||||
| NI | 75303323139 | Screw,10-24 X 0.906 |
|
- | |||||
| NI | 75303323277 | Screw,8-18 X 13/32 |
|
- | |||||
| NI | 75303324184 | Screw,8-18 X 5/16 ,black ,(4) |
|
- | |||||
| NI | 75304415832 | Screw,8-18 X 0.406 |
|
- |
