SELECT A DIAGRAM

01 - Cover Sheet


02 - Burner Box, Griddle, And Grill Parts


03 - Cooktop, Burner, Griddle, And Grill Parts


04 - 48" Chassis Parts

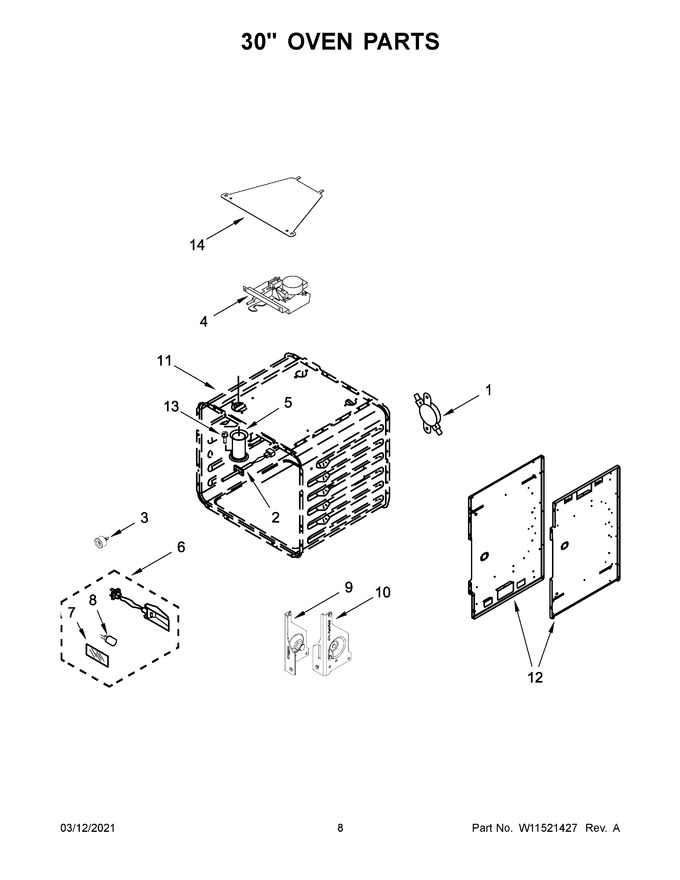

05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 120.45
3	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 280.85
5	W11318343		Tube, Vent   (Replaces: W11290663)				$ 90.37
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 95.43
7	W10169756		Lens, Light				$ 36.16
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W11096293		Receiver, Hinge (right)		Appelez-nous	-
11	NP		Box, Burner (not Serviced)		Appelez-nous	-
12	W11320145		Chassis, Side (left)   (Replaces: W11102297)				$ 206.69
13	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
14	W10160858		Cover, Latch				$ 65.95
12A	W11320144		Chassis, Side (right)   (Replaces: W11102296)				$ 199.72
NI	NP		Box, Burner (not Serviced)		Appelez-nous	-
NI	W11688396		Insulation, Back, 30   (Replaces: W10282816)		Appelez-nous	-
NI	W11661177		Insulation, Wrap, 30   (Replaces: W10282810)				$ 139.28
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.01

    View Diagram in Separate Window       Print Part List
