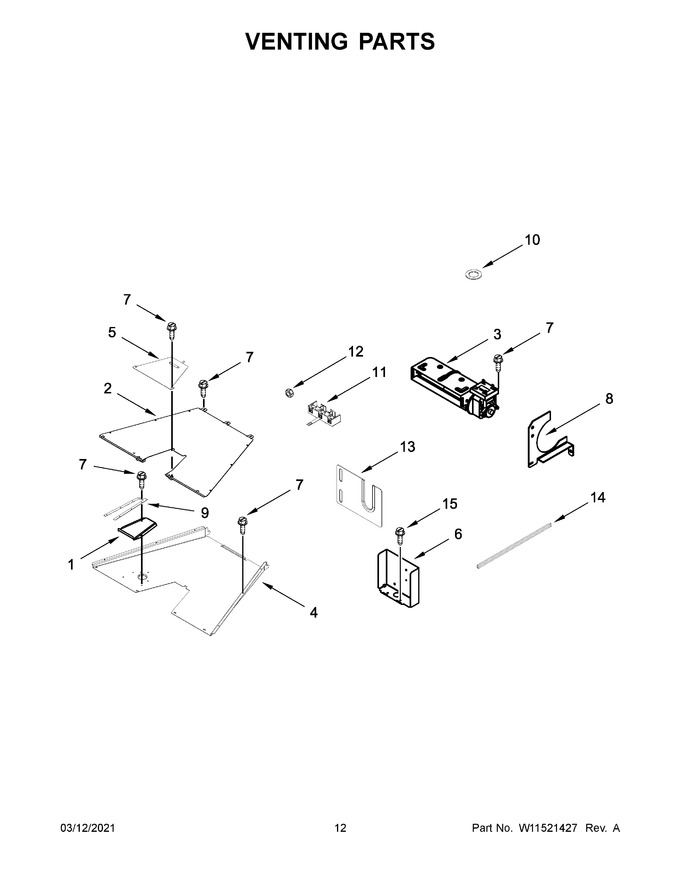

07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10818234		Slope, Exhaust Vent (30")		Appelez-nous	-
2	W11320402		Vent, Cooling Top (30")   (Replaces: W11105223)				$ 119.98
3	W11248652		Blower   (Replaces: W11200129)			Immediately	$ 217.39
4	W11320403		Vent, Cooling Bottom (30")   (Replaces: W11105222)		Appelez-nous	-
5	W11320405		Plate, Cooling Latch   (Replaces: W11109518)		Appelez-nous	-
6	W11353392		Box, Terminal		Appelez-nous	-
7	7101P42660		Screw		Appelez-nous	-
8	W11047754		Bracket, Blower Mount		Appelez-nous	-
9	W10270397		Seal, Vent Slope (30")		Appelez-nous	-
10	W10270396		Seal, Chimney		Appelez-nous	-
11	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 39.72
12	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.16
13	W11320407		Cover, Channel   (Replaces: W11106956)		Appelez-nous	-
14	W11175143		Gasket   (Replaces: W10919715)			Immediately	$ 21.11
15	W11169708		Screw   (Replaces: 3196560)				$ 13.36
1A	W10818235		Slope, Exhaust Vent (18")		Appelez-nous	-
2A	W11320597		Vent, Cooling Top (18")   (Replaces: W11113380)		Appelez-nous	-
4A	W11320598		Vent, Cooling Bottom (18")   (Replaces: W11113378)		Appelez-nous	-
9A	W10270402		Seal, Vent Slope (18")		Appelez-nous	-
