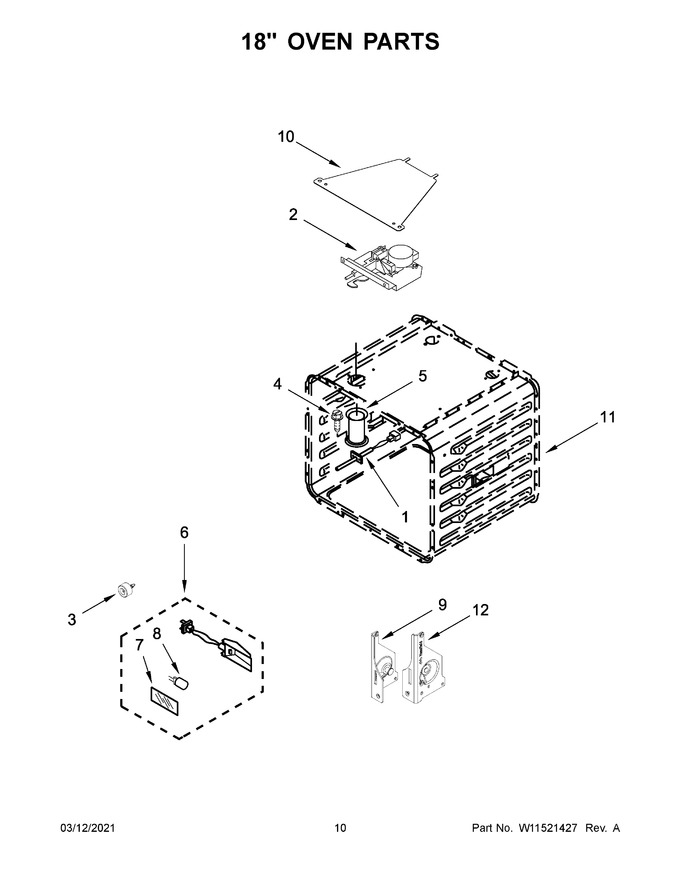

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 120.45
2	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 280.85
3	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
4	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
5	W10288078		Tube, Vent				$ 100.16
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 95.43
7	W10169756		Lens, Light				$ 36.16
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W10160858		Cover, Latch				$ 65.95
11	NP		Box, Burner (not Serviced)		Appelez-nous	-
12	W11096293		Receiver, Hinge (right)		Appelez-nous	-
NI	W11688744		Insulation, Wrap, 18   (Replaces: W10282820)		Appelez-nous	-
NI	W10282812		Insulation, Back, 18		Appelez-nous	-
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.01
NI	NP		Box, Burner (not Serviced)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
