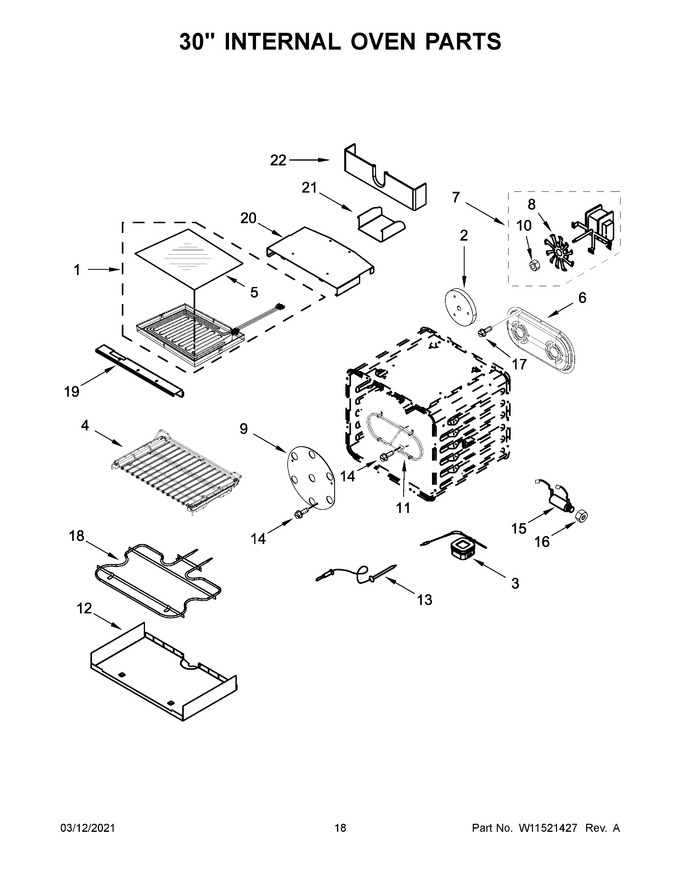

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11210530 | Element, Broil |
|
$ 428.45 | |||||
| 2 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 23.23 | ||||
| 3 | W11318341 | Probe, Wireless Meat (Replaces: W11186918) |
|
$ 174.92 | |||||
| 4 | W11563568 | Rack, Oven (sliding) (Replaces: W11111342) |
|
$ 275.18 | |||||
| 5 | W11193191 | Glass, Broil Element |
|
- | |||||
| 6 | W11232487 | Baffle, Convection |
|
$ 204.52 | |||||
| 7 | W11685616 | Fan, Convection (Replaces: W11121400) |
|
Immediately | $ 231.09 | ||||
| 8 | W11320150 | Blade, Fan (Replaces: W11108376) |
|
$ 293.69 | |||||
| 9 | W10261523 | Plate, Fan |
|
$ 66.73 | |||||
| 10 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 11.26 | |||||
| 11 | W10116434 | Element, Convection |
|
$ 293.64 | |||||
| 12 | W11320540 | Tray, Hidden Bake (Replaces: W11109421) |
|
- | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 82.91 | ||||
| 14 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 97.22 | ||||
| 16 | W11231343 | Nut, Locking (Replaces: W11033111) |
|
$ 11.55 | |||||
| 17 | W10739592 | Screw |
|
- | |||||
| 18 | W11783663 | Element, Hidden Bake (Replaces: W10115995) |
|
Immediately | $ 130.64 | ||||
| 19 | W11112336 | Bracket, Broil Front |
|
- | |||||
| 20 | W11158843 | Bracket, Broil Top |
|
- | |||||
| 21 | W11111391 | Cover, Broil Terminal |
|
- | |||||
| 22 | W11170823 | Cover Plate, Terminal Hole |
|
- |
