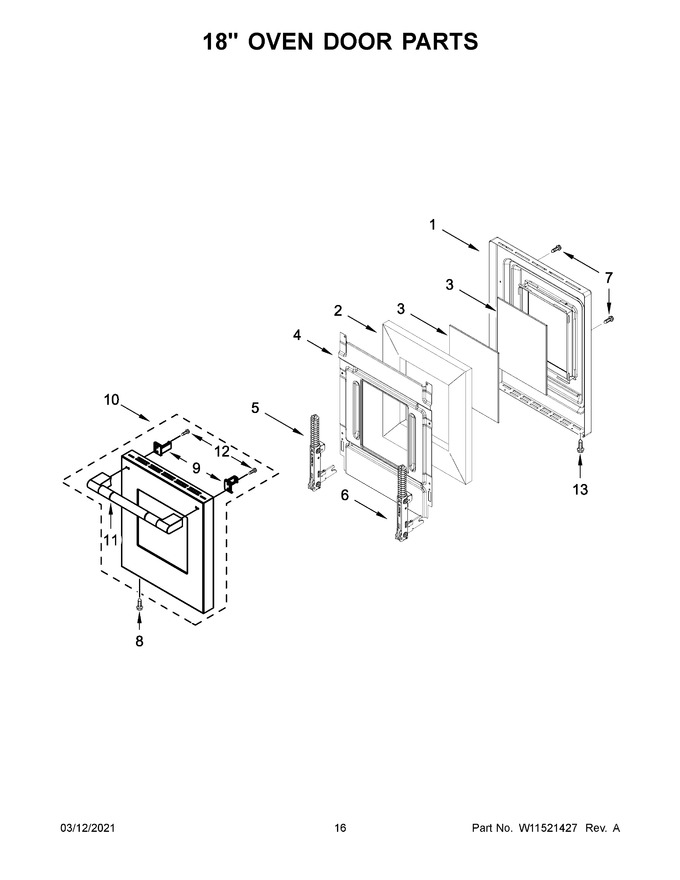

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318335 | Liner, Door (Replaces: W11036770) |
|
$ 329.85 | |||||
| 2 | W11317950 | Insulation, Door (Replaces: W10884821) |
|
- | |||||
| 3 | W11317951 | Glass, Inner (Replaces: W11036789) |
|
Immediately | $ 143.84 | ||||
| 4 | W11318328 | Retainer, Glass (Replaces: W11194818) |
|
$ 150.30 | |||||
| 5 | W11643896 | Hinge, Door (left) (Replaces: W11390106) |
|
Immediately | $ 169.09 | ||||
| 6 | W11643900 | Hinge, Door (right) (Replaces: W11390125) |
|
Immediately | $ 117.64 | ||||
| 7 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 12.66 | ||||
| 8 | W10162096 | Screw |
|
$ 18.77 | |||||
| 9 | W11317513 | Bracket, Handle (Replaces: W11197830) |
|
$ 67.55 | |||||
| 10 | W11315559 | Assembly, Outer Door Glass (includes Handle) (Replaces: W10799306) |
|
$ 717.62 | |||||
| 11 | W11317517 | Handle, Door (Replaces: W11102824) |
|
- | |||||
| 12 | WPW10276043 | Screw (Replaces: W10276043) |
|
$ 6.26 | |||||
| 13 | W11193480 | Screw (Replaces: W10607120) |
|
$ 12.62 |
