SELECT A DIAGRAM

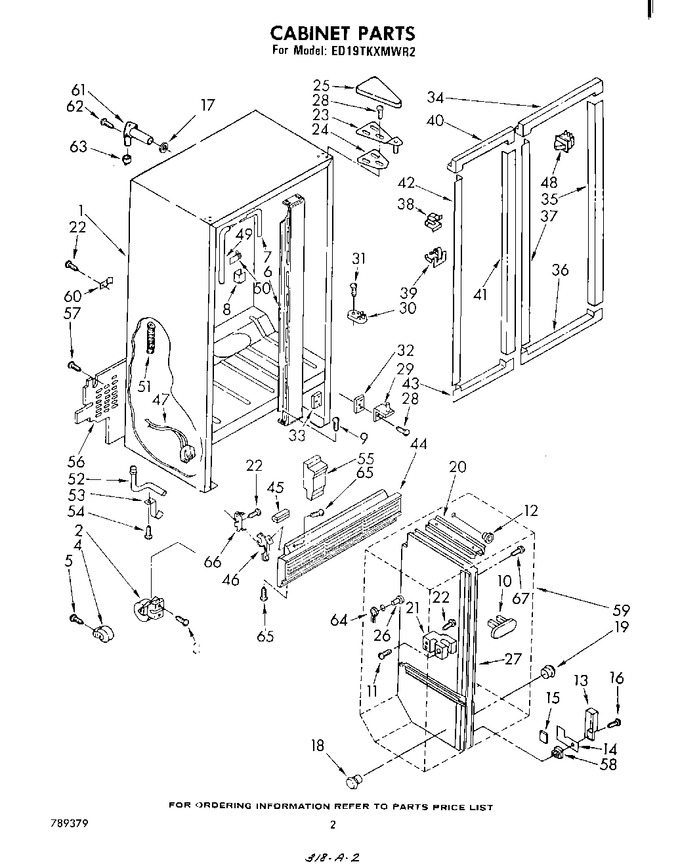

02 - Cabinet


03 - Refrigerator Door


04 - Freezer Door


05 - Air Flow And Control


06 - Shelf


07 - Unit , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981127		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 36.15
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	1100363		Center, Mullion Rail (platinum)		Appelez-nous	-
6	985979		Center, Mullion Rail (white)		Appelez-nous	-
6	989927		Center, Mullion Rail (almond)		Appelez-nous	-
6	989925		Center, Mullion Rail (golden Harvest)		Appelez-nous	-
6	989924		Center, Mullion Rail (coffee)		Appelez-nous	-
6	1100362		Center, Mullion Rail (toast)		Appelez-nous	-
7	851874		Heater, Mullion		Appelez-nous	-
8	510291		Retainer, Clip		Appelez-nous	-
9	488624		Screw, 8 X 3/8		Appelez-nous	-
9	WP308685		Screw (repair)   (Replaces: 488258)			Immediately	$ 7.08
10	836080		Mullion, Stabilizer		Appelez-nous	-
11	488280		Screw, 8 X 3/4		Appelez-nous	-
12	851020		Grommet, Wiring		Appelez-nous	-
13	985468		Escutcheon Meat		Appelez-nous	-
14	984102		Slide Meat				$ 5.02
15	992358		Pad, Foam		Appelez-nous	-
16	486214		Screw 8-15 X 1/2		Appelez-nous	-
17	WP1106508		Seal, Gasket   (Replaces: 1103059)			Immediately	$ 8.94
18	843888		Retainer, Hole		Appelez-nous	-
19	843887		Insert, Hole		Appelez-nous	-
20	842435		Gasket, Divider		Appelez-nous	-
21	836079		Mullion, Stabilizer Divider		Appelez-nous	-
22	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
23	842039		Hinge, Top		Appelez-nous	-
24	836192		Shim, Hinge		Appelez-nous	-
25	842010		Hinge Cover (white)		Appelez-nous	-
25	989895		Hinge, Cover (coffee)		Appelez-nous	-
25	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
25	989194		Hinge Cover (almond)		Appelez-nous	-
25	1100172		Hinge Cover (toast)		Appelez-nous	-
25	1100173		Hinge Cover (platinum)		Appelez-nous	-
26	850738		Receptacle Cap		Appelez-nous	-
27	985463		Divider Mullion Assembly		Appelez-nous	-
28	488949		Screw (repair)		Appelez-nous	-
28	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.07
29	986764		Hinge Bottom (l.h)		Appelez-nous	-
29	986763		Hinge Bottom (r.h)		Appelez-nous	-
30	WPW10329686		Door, Lower Cam   (Replaces: 986759)			Immediately	$ 4.89
31	WP486579		Screw, 8-32 1/4   (Replaces: 487983)				$ 6.61
31	488913		Screw (repair)		Appelez-nous	-
32	836196		Shim, Hinge Bottom		Appelez-nous	-
33	836162		Tap Plate (2)		Appelez-nous	-
34	843335		Trim, Breaker (top)		Appelez-nous	-
35	842178		Trim, Breaker (r.s.)		Appelez-nous	-
36	836446		Trim, Breaker (bottom)		Appelez-nous	-
37	836213		Trim, Breaker (l.s.)		Appelez-nous	-
38	836090		Breaker Trim Clip		Appelez-nous	-
39	849479		Breaker, Clip		Appelez-nous	-
40	843334		Breaker Trim, Top Freezer		Appelez-nous	-
41	836108		Breaker Trim, (r.s.) Freezer		Appelez-nous	-
42	836174		Breaker Trim (l.s.) Freezer		Appelez-nous	-
43	836447		Breaker Trim (bottom) Freezer		Appelez-nous	-
44	1100307		Exterior, Grille (toast)		Appelez-nous	-
44	944237		Exterior, Grille (almond)		Appelez-nous	-
44	944234		Exterior, Grille (coffee)		Appelez-nous	-
44	944233		Exterior, Grille (white)		Appelez-nous	-
44	944235		Exterior, Grille (golden Harvest)		Appelez-nous	-
44	1100308		Exterior, Grille (platinum)		Appelez-nous	-
45	546131		Bumper, Grille		Appelez-nous	-
46	WP944224		Support Grille   (Replaces: 944224)				$ 6.80
47	548734		Wire Assembly (water Valve)		Appelez-nous	-
48	W11384469		Rocker Arm Switch (2)   (Replaces: 549702)			Immediately	$ 33.51
49	934447		Heater, Stile		Appelez-nous	-
50	935663		Clip, Stile Heater		Appelez-nous	-
51	836068		Drain Fitting, Liner		Appelez-nous	-
52	841646		Extension, Drain Fitting		Appelez-nous	-
53	841648		Clip, Drain		Appelez-nous	-
54	488978		Screw, 8-15 X 3/8		Appelez-nous	-
55	836372		Insert, Baffle		Appelez-nous	-
56	850457		Cover, Unit Compartment		Appelez-nous	-
57	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 6.90
58	842339		Grommet		Appelez-nous	-
59	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
60	836077		Tube Clamp		Appelez-nous	-
61	653113		Fitting, Water Tube		Appelez-nous	-
62	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 7.20
63	WP487996		Cap, Plastic   (Replaces: 487996)				$ 7.43
64	481658		Wiring, Ice Maker		Appelez-nous	-
65	489085		Screw, 8-22 X 5/16 (4)		Appelez-nous	-
66	989068		Clip, Grille		Appelez-nous	-
67	WP489069		Screw, 8 X 1/2   (Replaces: 488874)			Immediately	$ 7.07

    View Diagram in Separate Window       Print Part List
