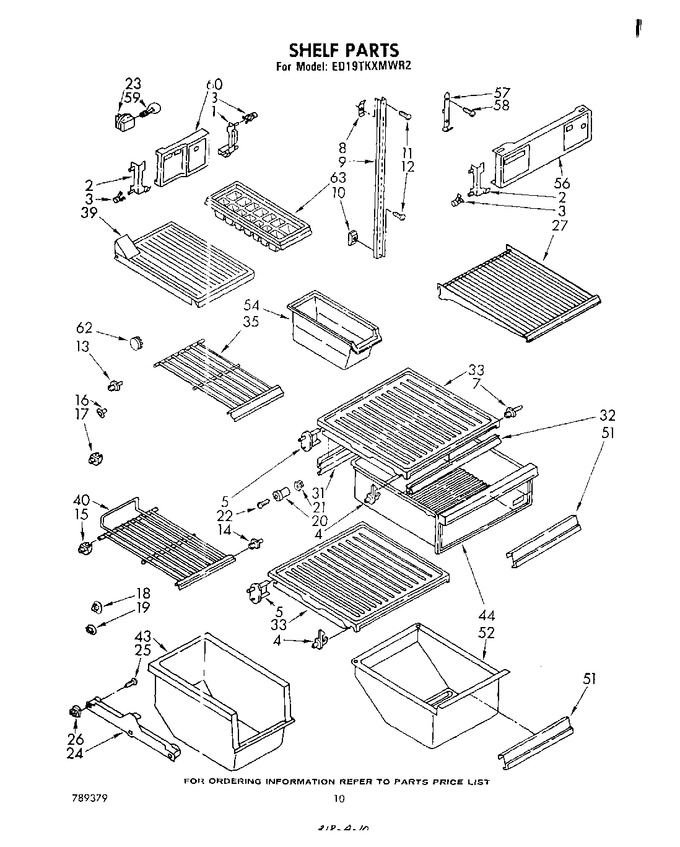

SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Door


04 - Freezer Door


05 - Air Flow And Control


06 - Shelf


07 - Unit , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842355		Support, Light Lens (r.s.)		Appelez-nous	-
2	842356		Support, Light Lens (l.s.)		Appelez-nous	-
3	843945		Clip, Tubular		Appelez-nous	-
4	652675		Shelf Stud (2)		Appelez-nous	-
5	845986		Shelf Stud (2)		Appelez-nous	-
7	536475		Shelf Stud (2)				$ 7.28
8	512923		Screw Anchor		Appelez-nous	-
9	934264		Shelf, Ladder		Appelez-nous	-
10	520965		Screw, Support				$ 26.87
11	488357		Screw, 8 X 1-1/4		Appelez-nous	-
12	488980		Screw (repair)		Appelez-nous	-
12	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
13	529758		Shelf, Stud		Appelez-nous	-
14	521878		Shelf Stud		Appelez-nous	-
15	210518		Shelf Support		Appelez-nous	-
16	533881		Grommet		Appelez-nous	-
17	523264		Shelf Stud, Saddle (l.s.)		Appelez-nous	-
17	523263		Shelf Stud Saddle (r.s.)		Appelez-nous	-
18	519890		Hole, Plug		Appelez-nous	-
19	512900		Stud, Retainer		Appelez-nous	-
20	658944		Stud, Shelf		Appelez-nous	-
21	538449		Screw Grommet		Appelez-nous	-
22	487559		Screw, 8-15 X 1-1/4		Appelez-nous	-
23	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 99.14
24	982321		Slide, Freezer Bin		Appelez-nous	-
25	487979		Screw, 8 X 1 (4)		Appelez-nous	-
26	842339		Grommet		Appelez-nous	-
27	946980		Shelf Cantilever		Appelez-nous	-
31	987420		Crisper Gasket Rear		Appelez-nous	-
32	987419		Crisper Gasket Front		Appelez-nous	-
33	983817		Pan Slide & Cover		Appelez-nous	-
35	946981		Shelf, Freezer		Appelez-nous	-
39	837202		Solid Shelf		Appelez-nous	-
40	946982		Shelf, Ice Cube Pan		Appelez-nous	-
43	1100151		Bin, Freezer		Appelez-nous	-
44	1100148		Pan, Crisper		Appelez-nous	-
51	984747		Overlay Pan		Appelez-nous	-
52	1100150		Pan, Meat		Appelez-nous	-
54	WP982704		Container   (Replaces: 1100155)				$ 27.90
56	943218		Light Lens, Refrigerator		Appelez-nous	-
57	984552		Support, Light Lens		Appelez-nous	-
58	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
59	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
60	985456		Light Lens, Freezer		Appelez-nous	-
62	659598		Hole, Plug		Appelez-nous	-
63	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 41.00

    View Diagram in Separate Window       Print Part List
