Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1100365		Refrigerator, Door Panel (platinum)		Appelez-nous	-
1	936632		Refrigerator, Door Panel (white)		Appelez-nous	-
1	936633		Refrigerator, Door Panel (coffee)		Appelez-nous	-
1	936634		Refrigerator, Door Panel (golden Harvest)		Appelez-nous	-
1	936636		Refrigerator, Door Panel (almond)		Appelez-nous	-
1	1100364		Refrigerator, Door Panel (toast)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door, Cam Upper   (Replaces: 986758)			Immediately	$ 24.62
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.07
5	988420		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 6.82
9	534927		Hole Plug		Appelez-nous	-
10	836120		Retainer, Side		Appelez-nous	-
11	836121		Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 939565)				$ 242.33
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	987009		Handle		Appelez-nous	-
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
17	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 6.75
18	488928		Screw, 10-32 X 5/8		Appelez-nous	-
19	848330		Insert, Handle		Appelez-nous	-
21	987008		Insert Retainer (top)		Appelez-nous	-
22	987010		Insert Retainer (bottom)		Appelez-nous	-
23	987006		End Cap		Appelez-nous	-
27	981428		Insert Door, Panel		Appelez-nous	-
28	848683		Trim, Door Shelf		Appelez-nous	-
29	WP849996		Retainer, Door Trim   (Replaces: 849996)				$ 6.81
32	1100153		Compartment Door		Appelez-nous	-
36	945117		Nameplate		Appelez-nous	-
38	991259		Tape Strip		Appelez-nous	-
41	520747		Tray, Butter		Appelez-nous	-

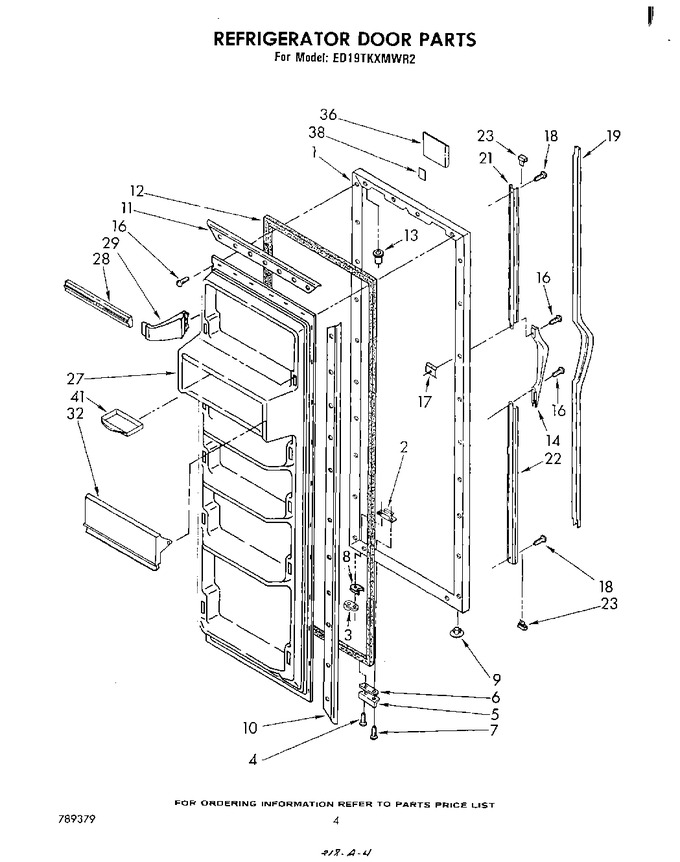

    View Diagram in Separate Window       Print Part List
