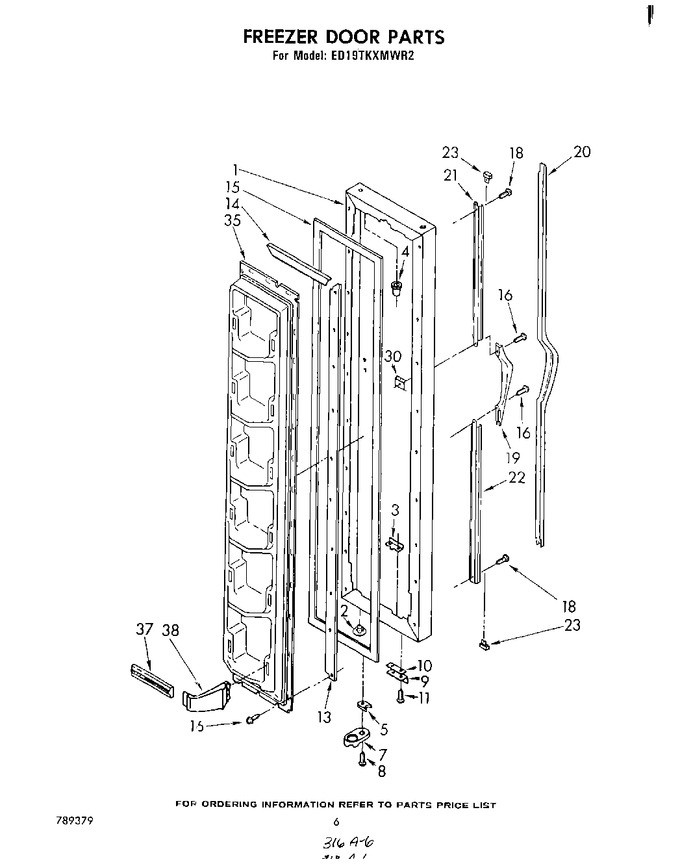

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1100367		Freezer, Door Panel (platinum)		Appelez-nous	-
1	936639		Freezer, Door Panel (white)		Appelez-nous	-
1	936640		Freezer, Door Panel (coffee)		Appelez-nous	-
1	936641		Freezer, Door Panel (golden Harvest)		Appelez-nous	-
1	936643		Freezer, Door Panel (almond)		Appelez-nous	-
1	1100366		Freezer, Door Panel (toast)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 6.82
7	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 24.62
8	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.07
9	988420		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	488930		Screw (repair)		Appelez-nous	-
11	488549		Screw, 8 X 5/8		Appelez-nous	-
13	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
14	836122		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
15	2188405A		Door, Gasket Magnetic   (Replaces: 939566)				$ 315.97
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
18	488928		Screw, 10-32 X 5/8		Appelez-nous	-
19	987009		Handle		Appelez-nous	-
20	848330		Insert, Handle		Appelez-nous	-
21	987008		Insert Retainer (top)		Appelez-nous	-
22	987010		Insert Retainer (bottom)		Appelez-nous	-
23	987006		End Cap (2)		Appelez-nous	-
30	WP939101		Screw, Anchor   (Replaces: 939101)				$ 6.75
35	937457		Interior, Door Panel		Appelez-nous	-
37	849814		Trim, Door Shelf		Appelez-nous	-
38	WP849996		Support Trim End   (Replaces: 849996)				$ 6.81
