SELECT A DIAGRAM
02 - Cabinet
03 - Refrigerator Door
04 - Freezer Door

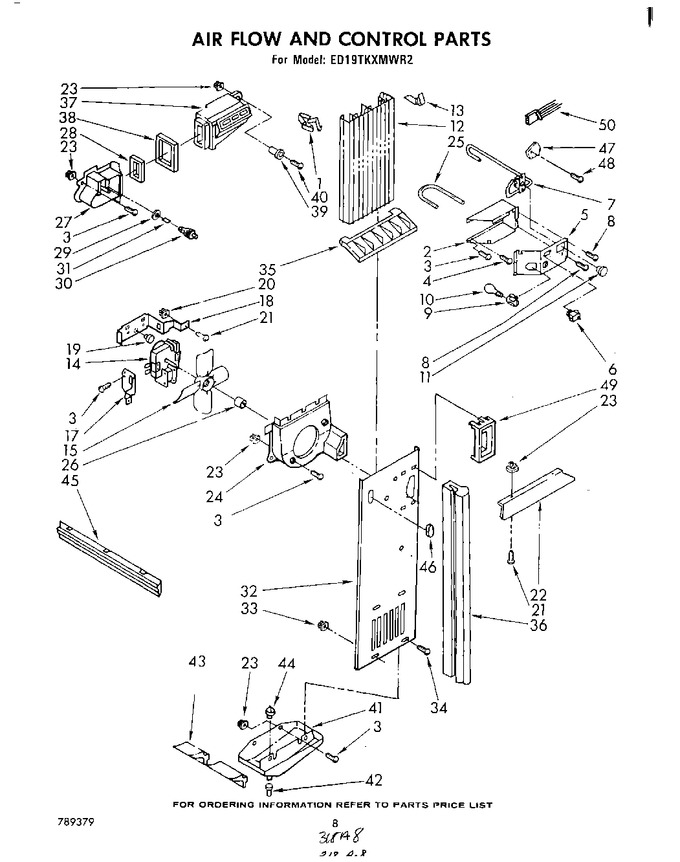

05 - Air Flow And Control
06 - Shelf
07 - Unit , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 9.38 | |||||
| 2 | 984550 | Box, Control |
|
- | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 4 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 5 | 934045 | Control Box Front |
|
- | |||||
| 6 | 938049 | Toggle, Switch |
|
- | |||||
| 7 | WP4317800 | Thermostat & Barrier Assembly (Replaces: 946644) |
|
Immediately | $ 238.87 | ||||
| 8 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 9.79 | |||||
| 9 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 99.14 | ||||
| 10 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 11 | 836482 | Knob, Temperature |
|
- | |||||
| 12 | 842399 | Duct, Air |
|
- | |||||
| 13 | 987954 | Baffle, Air |
|
- | |||||
| 14 | SM999 | Fan, Motor (Replaces: 1100945) |
|
Immediately | $ 27.23 | ||||
| 15 | 1100939 | Fan, Blade |
|
$ 41.86 | |||||
| 17 | 548263 | Fan, Bracket Double |
|
- | |||||
| 18 | 548264 | Fan, Bracket Single |
|
- | |||||
| 19 | 548268 | Fan Mounting Grommet |
|
- | |||||
| 20 | 538449 | Screw Grommet |
|
- | |||||
| 21 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 7.07 | ||||
| 22 | 836216 | Baffle, Liner Top |
|
- | |||||
| 23 | 842339 | Grommet |
|
- | |||||
| 24 | 991285 | Scroll Fan |
|
- | |||||
| 25 | WP2196003 | Thermostat, Tube Barrier (Replaces: 989573) |
|
$ 7.16 | |||||
| 26 | 992953 | Ring, Compression |
|
- | |||||
| 27 | 841269 | Air, Scoop Assembly (includes Illus. 28) |
|
- | |||||
| 28 | 844871 | Gasket, Air Scoop |
|
- | |||||
| 29 | 938439 | Retainer, Damper |
|
- | |||||
| 30 | 837445 | Control Knob Assembly |
|
- | |||||
| 31 | 837444 | Knob, Retainer |
|
- | |||||
| 32 | 984466 | Cover, Evaporator |
|
- | |||||
| 33 | 848445 | Grommet |
|
- | |||||
| 34 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 488992) |
|
Immediately | $ 7.01 | ||||
| 35 | 836144 | End Cap, Cover |
|
- | |||||
| 36 | 841606 | Gasket, Evaporator |
|
- | |||||
| 37 | 946145 | Air Diffuser Assembly |
|
- | |||||
| 38 | 842394 | Gasket, Air Diffuser |
|
- | |||||
| 39 | 836667 | Spacer |
|
- | |||||
| 40 | 488357 | Screw, 8 X 1-1/4 |
|
- | |||||
| 41 | 842404 | Drain Pan Assembly |
|
- | |||||
| 42 | 841770 | Fitting, Drain Pan |
|
- | |||||
| 43 | 845564 | Gasket, Drain Pan |
|
- | |||||
| 44 | 842259 | Cap, Drain |
|
- | |||||
| 45 | 821142 | Cover, Heat Exchanger (Replaces: 836514) |
|
$ 62.02 | |||||
| 46 | 659776 | Grommet, Inlet Tube |
|
- | |||||
| 47 | W10822278 | Defrost Timer, 10 Hr. (Replaces: 943435) |
|
Immediately | $ 31.00 | ||||
| 48 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 488911) |
|
$ 6.26 | |||||
| 49 | 835740 | Grille |
|
- | |||||
| 50 | 481782 | Wiring Defrost Timer |
|
- |
