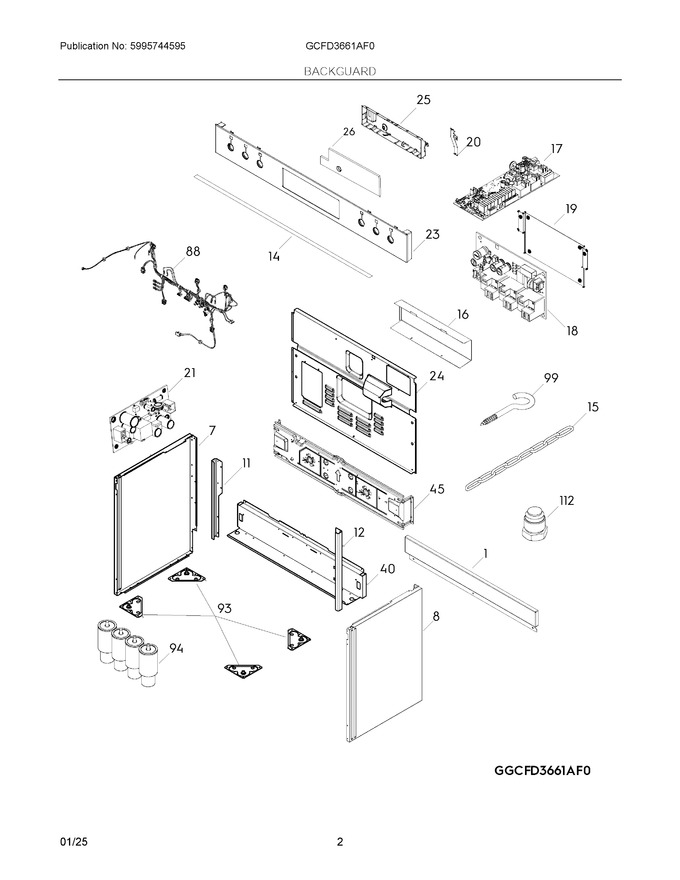

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4055494837		Cover, Convection Fan, 1			Immediately	$ 293.55
7	5304536177		Panel, Arctic, Rh		Appelez-nous	-
8	5304536178		Panel, Arctic, Lh		Appelez-nous	-
11	5304536179		Bracket, Reinforcement, Lh		Appelez-nous	-
12	5304536180		Bracket, Reinforcement, Rh		Appelez-nous	-
14	85802080034637		Gasket, Control Panel		Appelez-nous	-
15	5304536182		Chain, Anti-tilt				$ 6.65
16	5304536183		Bracket, Counterweight		Appelez-nous	-
17	5304533762		Pc Board, Relay/power, Main, Ovc				$ 256.92
18	5304533763		Pc Board, Relay, Joey				$ 349.56
19	5304536175		Bracket, Mounting, Joey Board		Appelez-nous	-
20	5304536184		Bracket, Earth C/p		Appelez-nous	-
21	5304536187		Board, Backlit, Knob Choke				$ 124.11
23	5304536192		Control Panel, Assembly				$ 432.84
24	5304536176		Panel Assembly, Back, Gas Vulcan		Appelez-nous	-
25	5304523582		Housing, Controller			Immediately	$ 34.13
26	5304536194		Insulation, Glassfiber		Appelez-nous	-
40	140208023014		Brace, Lower		Appelez-nous	-
45	140211814011		Brace, Oven, Rear		Appelez-nous	-
88	5304536190		Harness, Wiring, Main Dual		Appelez-nous	-
93	140153109016		Foot, Bracket Mt				$ 76.46
94	140163213030		Foot, Plastic Pack, Silver				$ 164.59
99	5304536211		Hook, 4.2x60				$ 8.44
112	5304536197		Manifold, Plug		Appelez-nous	-
NI	5304536189		Harness, Wiring, Macs To Ui		Appelez-nous	-
NI	5304536193		Controller, Dual, Pux		Appelez-nous	-
