SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

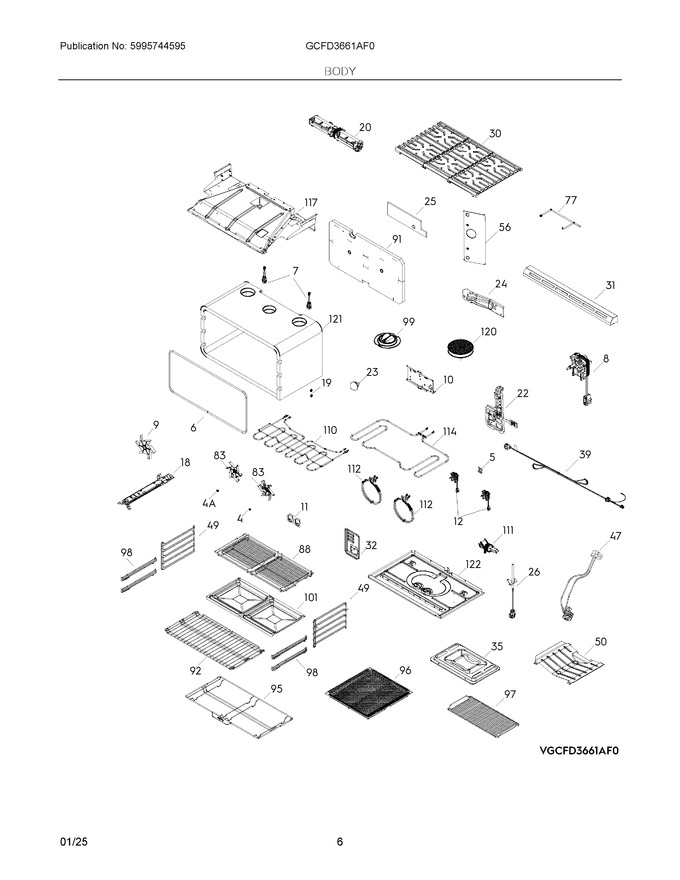

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	4055471017		Nut, Fan Motor, Rh		Appelez-nous	-
5	4055471116		Support, Element, Heating		Appelez-nous	-
6	4055494738		Gasket, Seal, Oven		Appelez-nous	-
7	5304533411		Lamp, Halogen, G9 40w 120v   (Replaces: 5304533556)			Immediately	$ 36.50
8	5304533557		Motor, Fan, Convection				$ 96.69
9	4055548913		Blade, Convection Fan		Appelez-nous	-
10	5304536174		Bracket, Rear, Oven		Appelez-nous	-
11	4055548723		Clip, Element Mtg.		Appelez-nous	-
12	5304536173		Motor, Fan, 120v		Appelez-nous	-
19	5614852019		Clip, Side Rails		Appelez-nous	-
20	5304536186		Motor, Cooling Fan				$ 172.14
22	5304536191		Shield, Terminal Block		Appelez-nous	-
23	4055470712		Bumper, Stop, Black		Appelez-nous	-
24	4055549598		Bracket, Temp Probe		Appelez-nous	-
26	5304533767		Probe, Oven Temp			Immediately	$ 111.12
30	140270371028		Trivet, Grate Kit   (Replaces: 5304536208)				$ 203.65
31	5304536209		Trim, Vent, Top				$ 240.59
32	5304533771		Cover, Access, Terminal Block		Appelez-nous	-
47	140233289085		Receptable, Food Sensor   (Replaces: 5304536224)		Appelez-nous	-
49	140263259016		Rack, Set, Oven				$ 167.09
77	140126103013		Spring, Hot Air, Motor		Appelez-nous	-
83	140117617013		Impeller, Fan, Oven		Appelez-nous	-
88	140188856011		Rack, Air Fryer, Assembly		Appelez-nous	-
91	140129471011		Insulation, Back, Oven		Appelez-nous	-
92	140263259016		Rack, Shelf   (Replaces: 140130981016)				$ 167.09
95	140177100017		Shelf, Air Fry		Appelez-nous	-
96	140177094012		Tray, Air Fry		Appelez-nous	-
97	140181661012		Rack, Insert, Oven				$ 244.05
98	140181583018		Glider, Slide Double		Appelez-nous	-
99	140023772019		Retainer, Pyro		Appelez-nous	-
101	140185619016		Tray, Full Width		Appelez-nous	-
110	5304536170		Heating Element, Grill, 1700w		Appelez-nous	-
111	85806270010026		Clip, Standoff		Appelez-nous	-
112	5304536171		Element Heating, Fan, Ring		Appelez-nous	-
114	140222924049		Element Heating, Bottom, 1800w   (Replaces: 5304536172)		Appelez-nous	-
117	5304536185		Panel Assembly, Deck, Gas Vulcan		Appelez-nous	-
120	140003385014		Catalyst, Pyro		Appelez-nous	-
121	140016063020		Insulation, Oven		Appelez-nous	-
122	140124778014		Shield, Heater, Lower Oven		Appelez-nous	-
4A	4055471025		Nut, Fan Motor, Lh		Appelez-nous	-
NI	5304536206		Kit Terminal		Appelez-nous	-
NI	807822609		Probe, Food, Assembly		Appelez-nous	-
NI	5304536207		Harness, Wiring, Link 3-wire		Appelez-nous	-
NI	4055548616		Screw, Hex/multi, #8 X 8mm		Appelez-nous	-
NI	4055548848		Clip, Thermostat, Bios		Appelez-nous	-
NI	4055549952		Screw, Ph2 Nylon Washr, #8 X 1/2		Appelez-nous	-
NI	4055563318		Screw #8, 3/8 W/hd		Appelez-nous	-
NI	4055548921		Screw, #2 Ph Ab Mush, #8 X 1/2, Black		Appelez-nous	-
NI	4055548707		Screw, Pan Phil, #6 X 9.5, Zinc		Appelez-nous	-
NI	85807010090377		Screw, #8 X 3/8 Mush		Appelez-nous	-
NI	85807010150064		Screw, #8 X 1/2 Hex Ni		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
